SERIES-VARIOUSModel 41620979

AQUAMOON Rain panel

Showers · Spa Showers · Rain panels

Select finish

Matte White

Availability, compatibility, and final specification are confirmed by Aquatop before ordering.

Model 41620979

Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.

Finish	Article number	GTIN	Product view
Matte White	41620979-10	4029011820656	Selected

exposed trim parts
Rain panel with 3 different flow modes
AQUACIRCLE RAIN: Circular rain curtain, max. flow rate 12 l/min (at 3 bar)
TEMPEST RAIN: Natural rain, max. flow rate 10 l/min (at 3 bar)
QUEEN‘S COLLAR CASCADE: Rounded cascade, max. flow rate 24 l/min (at 3 bar)
with anti-scale system
# Technical data:

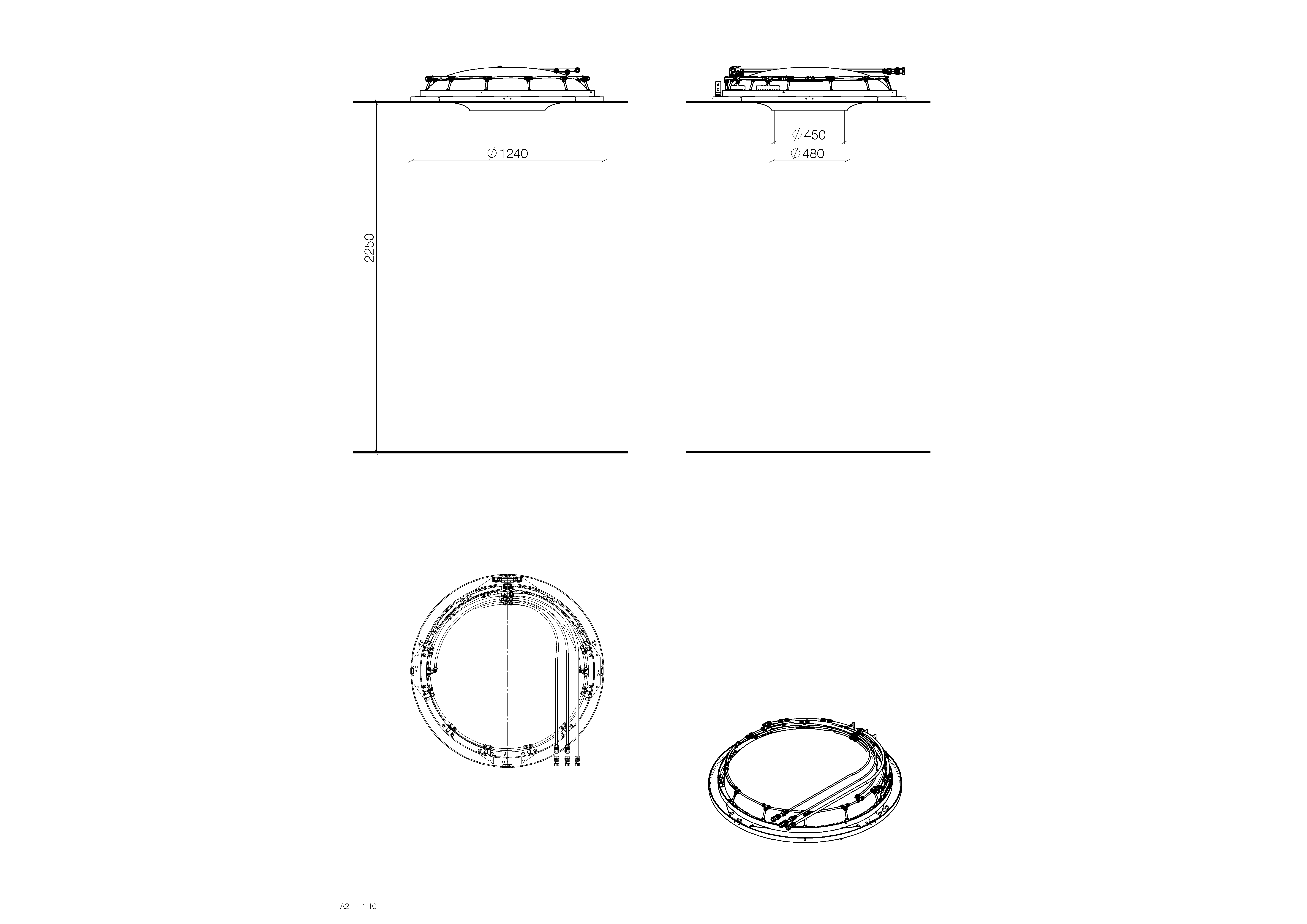

Outer diameter 1240 mm, opening diameter 450 mm
Weight 22.5 kg
Matt white cover, RAL 9003
# Electric:
Ambient lighting, LED light color approx. 2700 K
Bulbs protected against splashing water
Technology: LED, not dimmable
Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7-701).
# Environment:
Not suitable for use in a steam room.
Not suitable for outdoor use.
Not suitable for use in chlorinated or salty environments.
# Planning tips:
Provided by customer: Light switch
Control elements not included among the items supplied
# Notes:

**Rain panel cover for adaptation to ceiling colour available in all RAL colours, price and delivery time on request**

3562097090
