SERIES-VARIOUSModel 3504397090

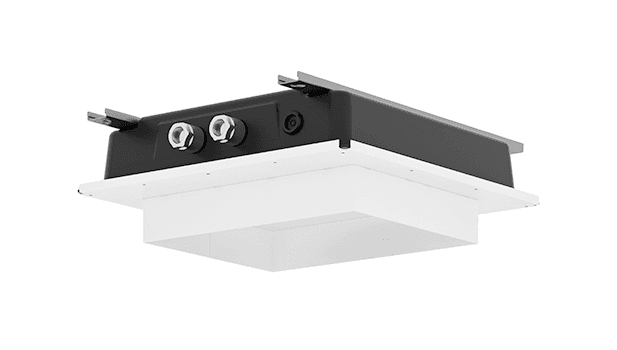

Concealed ceiling installation box for recessed ceiling installation -
Concealed bodies · Other concealed bodies · Concelaled wall mounting boxes
Select finish
Standard finish- Article number
- 3504397090
- GTIN
- 4029011952036
- Mounting
- Other concealed bodies
- Product type
- Concelaled wall mounting boxes
Availability, compatibility, and final specification are confirmed by Aquatop before ordering.
Model 3504397090
Article numbers by finish
Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.
| Finish | Article number | GTIN | Product view |
|---|---|---|---|
| Standard finish | 3504397090 | 4029011952036 | Selected |
Technical details
- concealed rough parts
- 2x female thread 1/2" connections

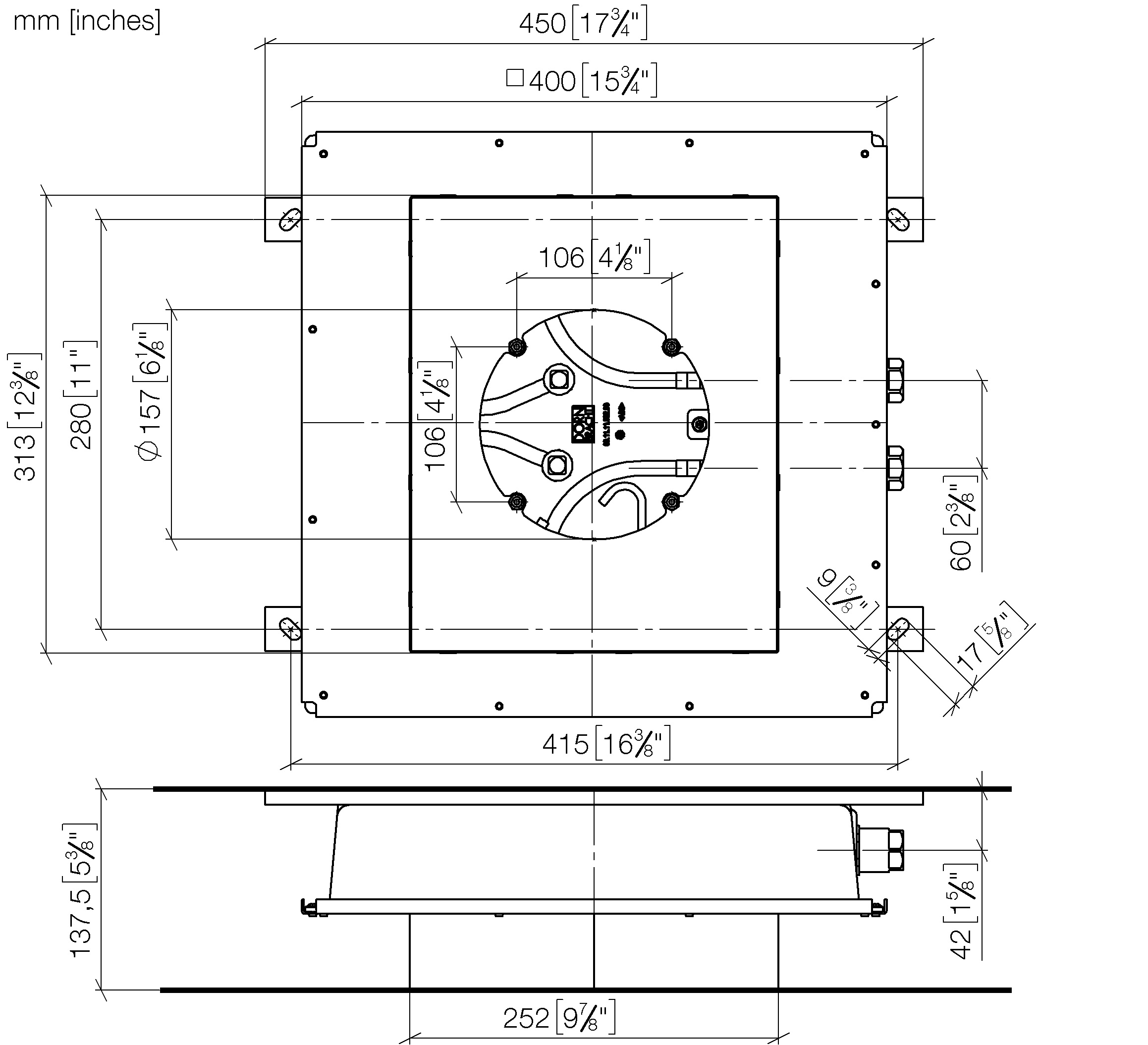

- flush-mounted RAL 9003 signal white light reflection box 310 x 250 mm
- For simultaneous control of the jet types, we recommend the xTool thermostat module
- Not suitable for use in a steam room.
- WRAS
**Pre-assembly kit for three-way diverter included**
Documents and package data
- Package height
- 400 mm
- Package width
- 400 mm
- Package depth
- 140 mm
- Gross weight
- 6.4 kg
Optional accessories
1201097090
