SERIES-VARIOUSModel 3561097090

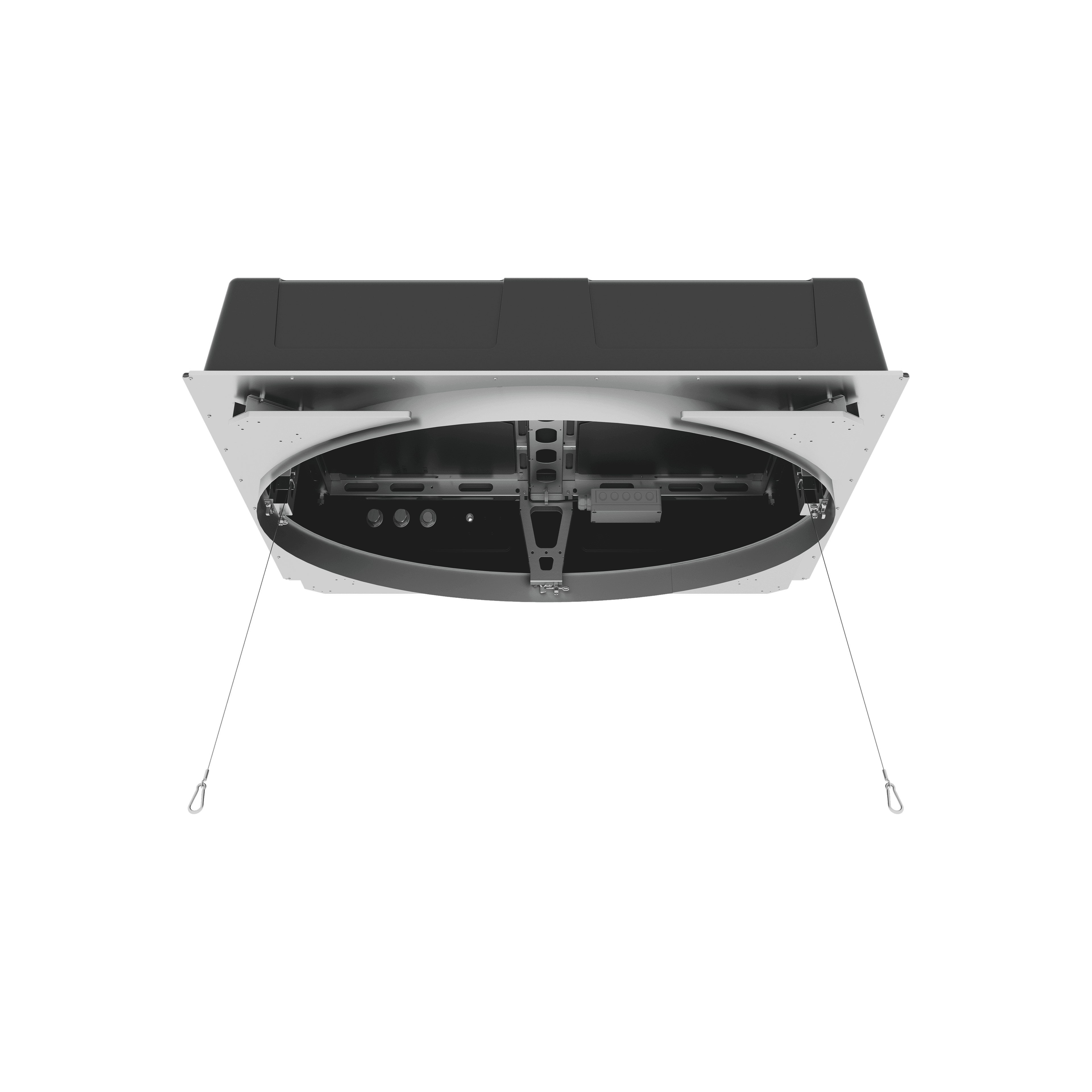

RAINMOON Concealed ceiling installation box -
Concealed bodies · Other concealed bodies · Spa showers
Select finish
Standard finish- Article number
- 3561097090
- GTIN
- 4029011820670
- Mounting
- Other concealed bodies
- Product type
- Spa showers
Availability, compatibility, and final specification are confirmed by Aquatop before ordering.
Model 3561097090
Article numbers by finish
Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.
| Finish | Article number | GTIN | Product view |
|---|---|---|---|
| Standard finish | 3561097090 | 4029011820670 | Selected |
Technical details
- concealed rough parts
- Rain panel with 2 different spray modes
- AQUACIRCLE RAIN: Circular rain curtain, max. flow rate 6.8 l/min (at 3 bar)
- TEMPEST RAIN: Natural rain, max. flow rate 5 l/min (at 3 bar)

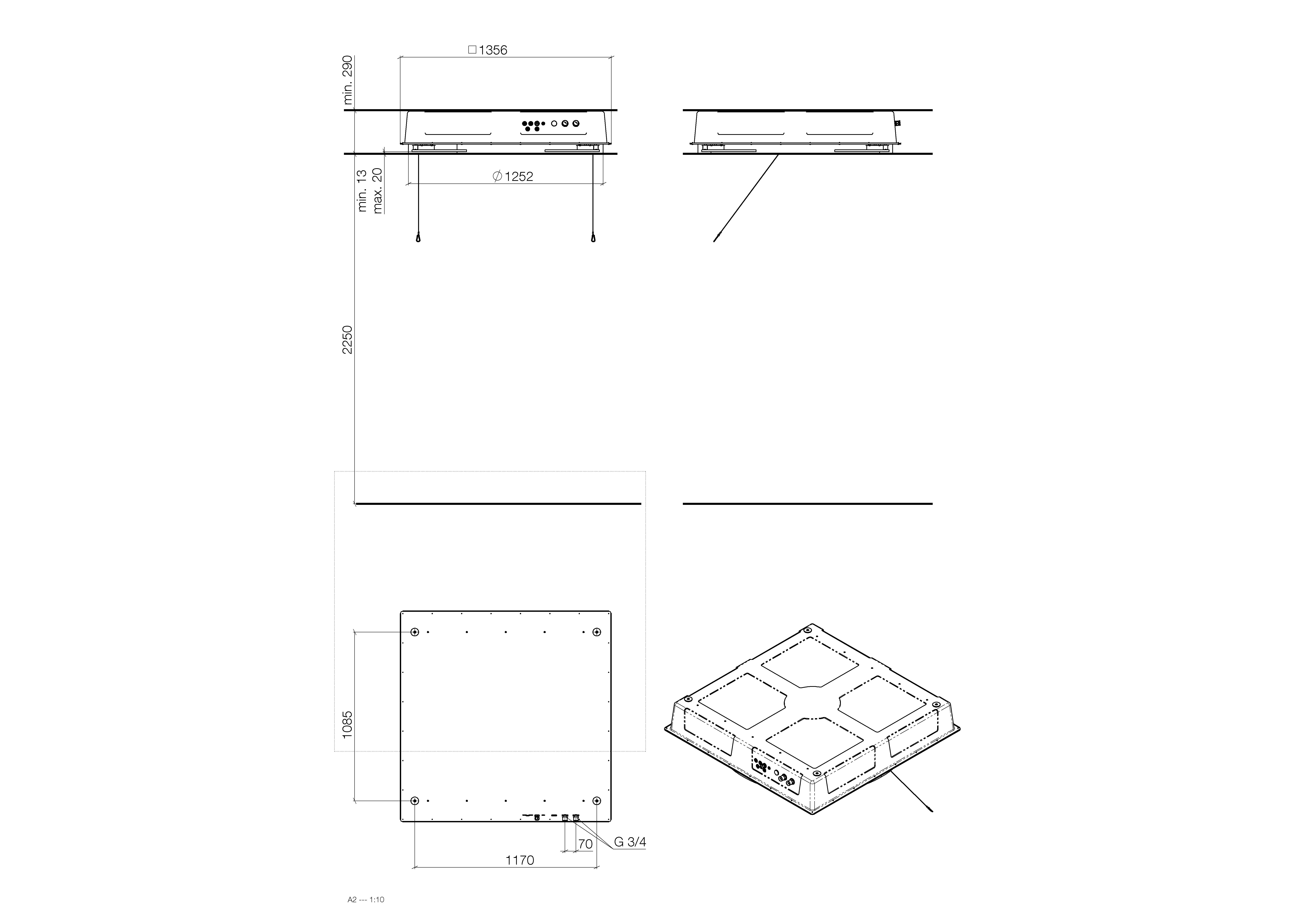

- Ceiling installation enclosure 1356 x 1356 x 290 mm
- Opening diameter 1252 mm
- Ceiling construction with adequate structural strength for the permanent attachment of the device (weight: 57.5 kg / 127 lbs. (US)). M8 threaded bolts (minimum strength: 2000 N) are required to secure the ceiling module
- Input LED power supply
- Connector, 220-240V AC 50Hz power supply
- Output LED power supply
- 12V DC (CV)
- Output specification LED power supply
- SELV (Safety Extra Low Voltage)
- Provided by customer: Light switch
- # Environment:
- Not suitable for use in a steam room.
- Not suitable for outdoor use.
- Not suitable for use in chlorinated or salty environments.
- Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7-701).
**Pre-assembly kit for three-way diverter included**
Documents and package data
- Package height
- 500 mm
- Package width
- 1440 mm
- Package depth
- 1440 mm
- Gross weight
- 59 kg
Optional accessories
1201297090
