SERIES-VARIOUSModel 35750970

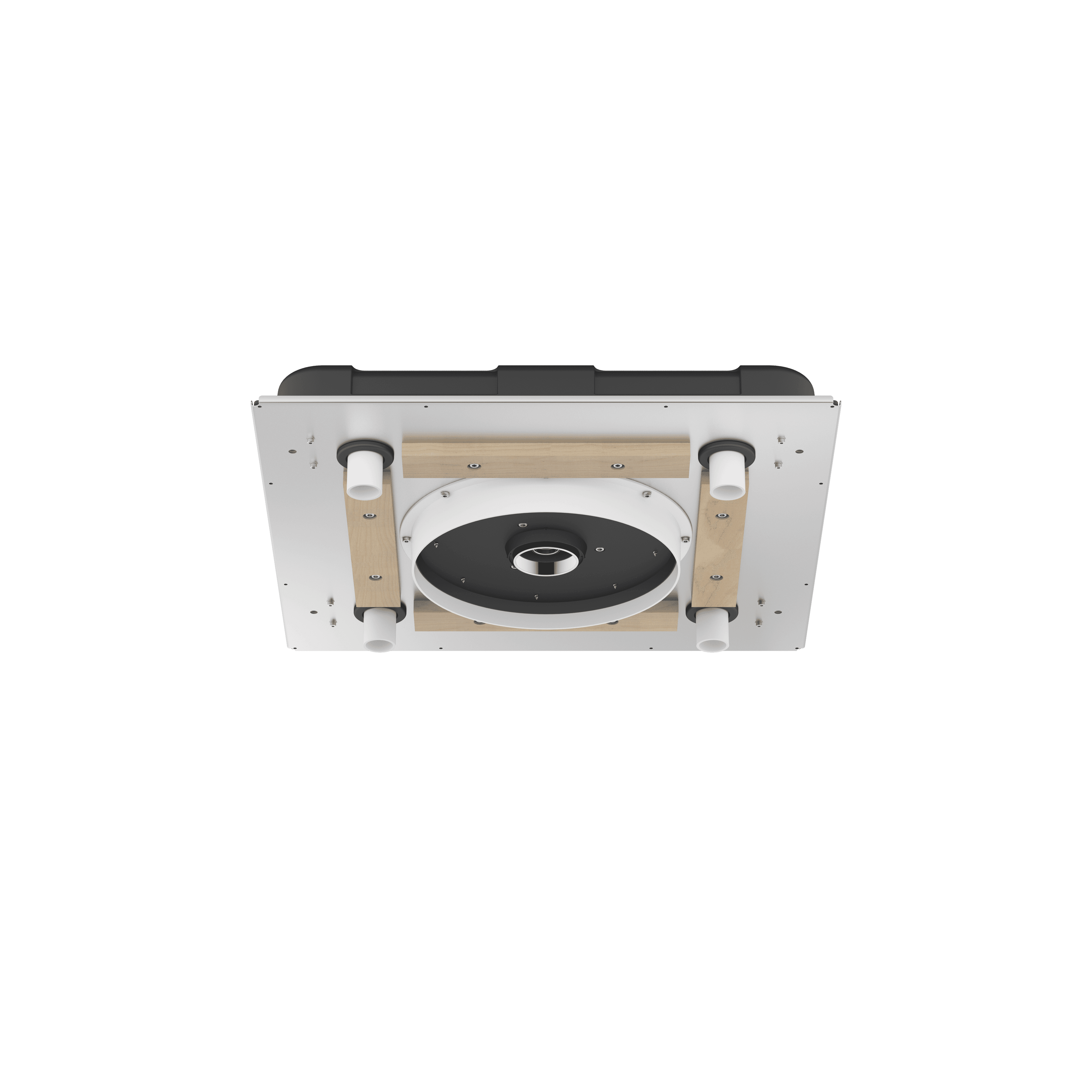

SERIES-VARIOUS AQUAHALO Concealed ceiling installation box

Concealed bodies · Other concealed bodies · Spa showers

Select finish

Chrome

Availability, compatibility, and final specification are confirmed by Aquatop before ordering.

Model 35750970

Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.

Finish	Article number	GTIN	Product view
Chrome	35750970-00	4099477200316	Selected
Brushed Champagne (22kt Gold)	35750970-46	4099477200378	View finish
Brushed Platinum	35750970-06	4099477200330	View finish
Champagne (22kt Gold)	35750970-47	4099477200392	View finish
Matte Black	35750970-33	4099477200354	View finish

concealed rough parts
Rain panel with 3 different flow modes
AQUACIRCLE RAIN: Circular rain curtain, max. flow rate 14 l/min (at 3 bar)
TEMPEST RAIN: Natural rain, max. flow rate 9 l/min (at 3 bar)
DIAMOND RAIN: Ring of rain, max. flow rate 6.8 l/min (at 3 bar)

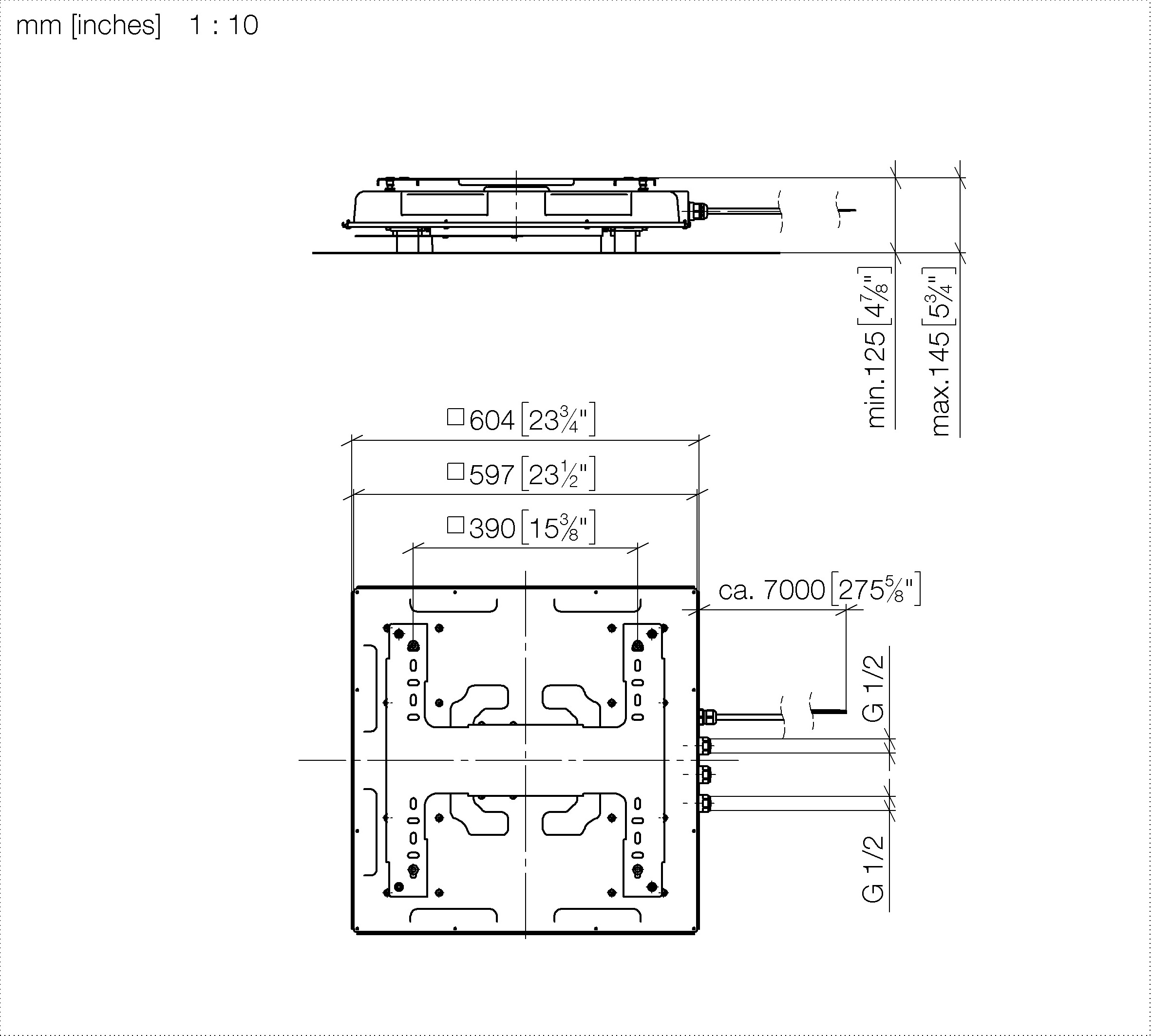

Ceiling installation enclosure 605 x 605 x 95 mm
Weight: 10 kg
min. recess depth 110 mm
max. recess depth 150 mm
For simultaneous control of the jet types, we recommend the xTool thermostat module
Separate LED power supply
Input LED power supply
Input 100-240V AC 50-60Hz
Output LED power supply
350mA (CC)
Output specification LED power supply
SELV (Safety Extra Low Voltage)
Class 2
Ceiling module power supply
350mA (CC)
Supply pipe 7 m
Spot lighting
LED colour temperature approx. 3000 K
Bulbs protected against splashing water
Contains energy efficiency class bulbs
Technology: LED, not dimmable
Provided by customer: Light switch
# Environment:
Not suitable for outdoor use.
Not suitable for use in a steam room.
Not suitable for use in chlorinated or salty environments.
Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7-701).

**Pre-assembly kit for three-way diverter included**

41750979-00
