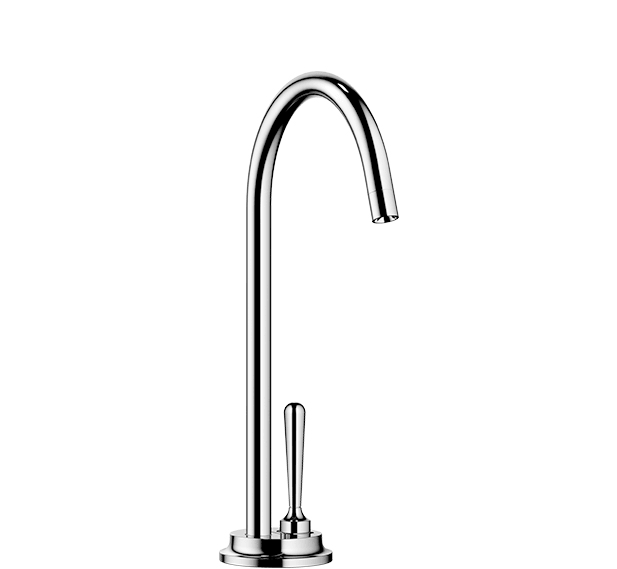

Dornbracht VAIA HOT & COLD WATER DISPENSER Article 17881809-00

Kitchen faucets · Drinking fittings · Water Dispensers

Select finish

List price · 17881809-00

Loading price...

Availability, compatibility, and final specification are confirmed by Aquatop before ordering.

Model 17881809

Article numbers by finish

Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.

Finish	Article number	GTIN	Product view
Chrome	17881809-00	4099477472287	Selected
Brushed Platinum	17881809-06	4099477516219	View finish
Platinum	17881809-08	4099477516226	View finish
Durabrass (23kt Gold)	17881809-09	4099477516233	View finish
Champagne (22kt Gold)	17881809-47	4099477516295	View finish
Matte Black	17881809-33	4099477516264	View finish
Brushed Durabrass (23kt Gold)	17881809-28	4099477516257	View finish
Brushed Dark Platinum	17881809-99	4099477516318	View finish
Brushed Champagne (22kt Gold)	17881809-46	4099477516288	View finish
Brushed Dark Brass (PVD)	17881809-39	On request	View finish
Brushed Dark Bronze (PVD)	17881809-43	On request	View finish
Brushed Chrome	17881809-93	4099477516301	View finish
Dark Chrome	17881809-19	4099477516240	View finish
Brushed Bronze (PVD)	17881809-42	4099477516271	View finish

150mm projection
Pivoting spout 360°
Laminar flow
Height of mixer 290 mm
Height up to laminar flow regulator 208 mm
Hole diameter 35 mm
Provides filtered, hot water up to 93°C
With scalding protection
Version without child safety lock available as a custom-made product
Provides filtered water
Max. flow 3.8 l/min at 3 bar flow pressure
Mechanical valve
Lead-free
Lever
This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
A minimum flow pressure of 3 bar is necessary for the HOT & COLD WATER DISPENSER to work perfectly in conjunction with a hot water tank and filter.
The installation must be above a kitchen sink.
The filter cartridge must be changed every six months. The installation instructions contain further information for guidance.
Detailed planning information and technical data can be found at www.dornbracht.com/professional
Not compatible with reverse osmosis filtration
