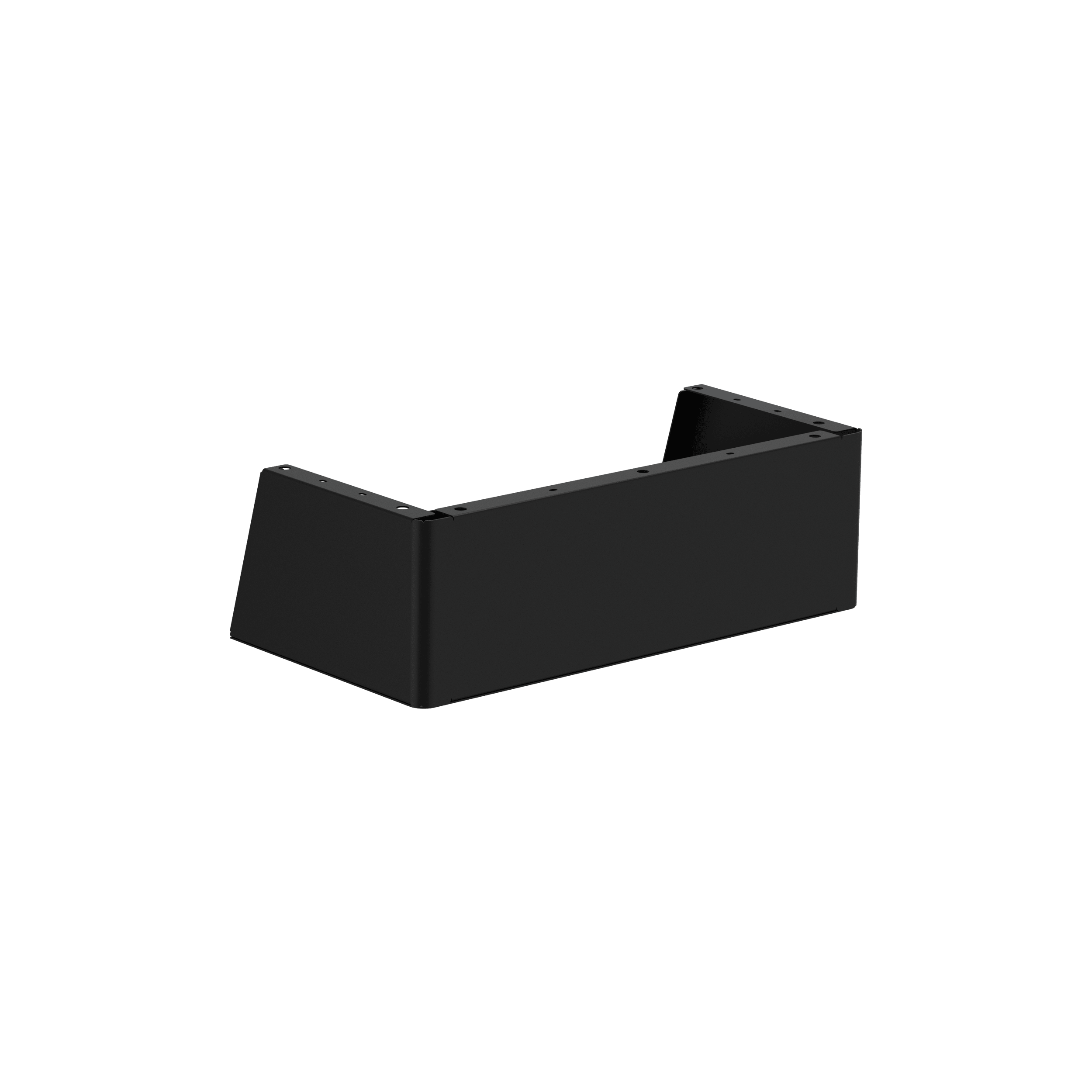

Dropspot™Model CANE-APRON-BLK
Sloan CANE-APRON-BLK Product code 33830031
This black cane apron is designed for use for specific DropSpot DRS-120 bi-level applications where the DropSpot bottle fillers and water coolers are in the circulation path to assist compliance with the 27” floor to underside ADA requirement for visual aid long cane detection.
- Product type
- Accessories
- Model
- CANE-APRON-BLK
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
Selected reference
33830031
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
- Installation
- Confirm installation requirements with Aquatop
Official Sloan resources
DropSpot Cane Apron Installation InstructionsInstallation guideDropSpot™ Care and Cleaning GuideMaintenance guide33830031 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Cane apron designed for use in specific DropSpot DRS-120 bi-level applications where the DropSpot bottle fillers and water coolers are in the circulation path to meet the 27” floor to underside ADA requirement
- Assist with ADA compliance for detection by visual aid long cane when properly installed by extending the bottom of the high side of a high-low drinking fountain
- Dimensions: 19.0” (482 mm) length x 6” (152 mm) height x 9.95” (252 mm) width (at the bottom)/ 8.23” (209 mm) width (at the top)
- Net weight: 8.6 lbs
- Black powder coat finish
- Mounting hardware included
Key features
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
