Product reference
33461047
Selected finishESD-360-CP · Polished Chrome
ESD-360-CP · Polished Chrome01 / 12
SloanModel ESD-360

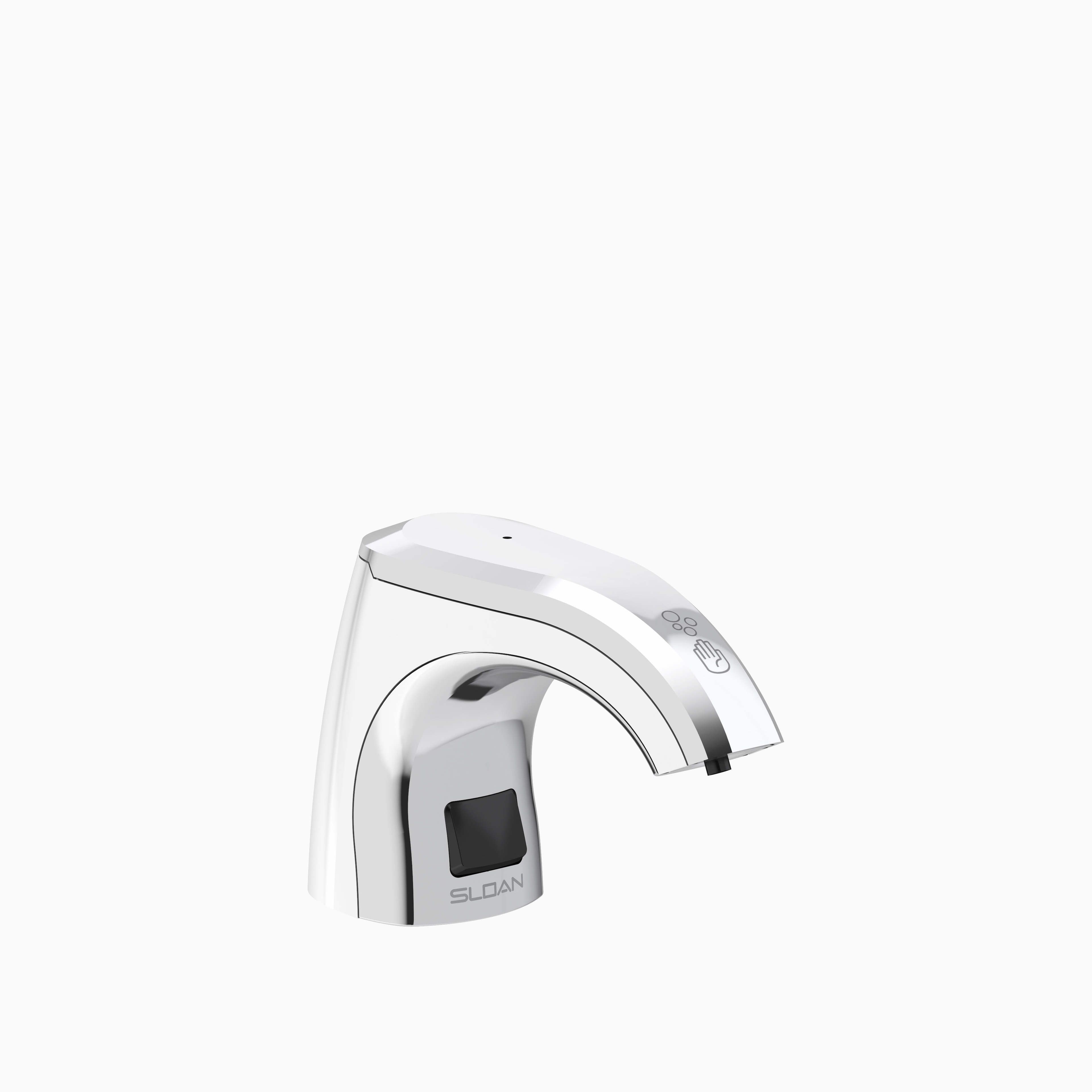

Sloan ESD-360 Product code 33461047
The ESD-360 is Sloan’s deck mounted Top-fill soap dispenser. Unlike most other Top-fill soap dispenser in the market, the ESD-360 is a closed system that can give building owners and end users a piece of mind that there soap is not contaminated. The Top-fill dispensing eliminates wasted soap and reduces the need to go under the sink for refills. The ESD-347 is a soap refill bottle that is specifically used on the ESD-360 Top-fill Soap Dispenser, this bottle cannot be used with other Sloan soap dispensers. This is a clear foam soap that is non-scented, this specific product is 2000 ml. The ESD-347 is a unique and self-preserved REDIFOAM™ soap formulation helps the dispensing fixture remain clean and clog free. The ESD-347 refill is free of harsh preservatives, antibacterial, parabens, phthalates, fragrance, and dyes. This specific refill bottle meets UL EcoLogo Standard for Hand Cleaners UL 2784, is 90% biobased content and is fully recyclable. Soap refills must be purchased in quantities of four bottles, and can be purchased using Sloan description ESD-347.
- Product type
- Soap Dispensers
- Model
- ESD-360
- Dimensions
- Width: 64 mm · Height: 110 mm · Depth: 165 mm
- Installation
- Deck-Mounted
Selected reference
33461047
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Planning data
Details and installation
- Dimensions
- Width: 64 mm · Height: 110 mm · Depth: 165 mm
- Installation
- Deck-Mounted
- Installation
- Deck-Mounted
Official Sloan resources
ESD-360 BIMBIM fileFaucet and Soap Dispenser BrochureBrochureESD-360 Top-fill Soap Dispenser Installation InstructionsInstallation guideTop-fill Soap Dispenser Sell SheetSell SheetESD-347 PURELL Professional REDIFOAM™ Foam Soap SDS SheetSDS Safety Data SheetESD-347 PURELL Professional REDIFOAM™ Foam Soap SDS Sheet (Spanish)SDS Safety Data Sheet33461047 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Touch-free operation improves hand washing hygiene
- Top-fill dispensing eliminates wasted soap and reduces the need to go under the sink for refills
- All electronics in spout are sealed
- Designed for drip free foam dispensing operation
- Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout
- Soap dispenser reservoir holds 2000ml of soap
- Battery life of 45,000 activations. 1-2 years based on usage.
- Approx. 2,000 dispenses per soap refill bottle
- Ships with 2 bottles of ESD-347 non-scented, non-colored foam soap (2000ml per bottle)
- Ships with battery pack ("D" Alkaline batteries included)
- Sensor range – nominal 5”
- All mounting hardware included
- Optional AC adaptor or Hardwired Kit can be purchased separately (ESD-117, ESD-118 respectively). If using AC adaptor, GFI outlet 120V/15 Amp suggested per code
- Refill can be purchased through Sloan with part number ESD-347 or through GOJO Distribution with part number 8672-04
- Pairs well with EAF-300/350 Faucets
- Note: Must used approved soap refills. Refills cannot be refilled after use. They must be recycled and a new bottle inserted into the dispenser. If they are refilled with a different soap the warranty on the soap dispenser will become null and void.
Key features
ADA CompliantUL Certified, US
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
