Pwt™Model MCR-101-CA

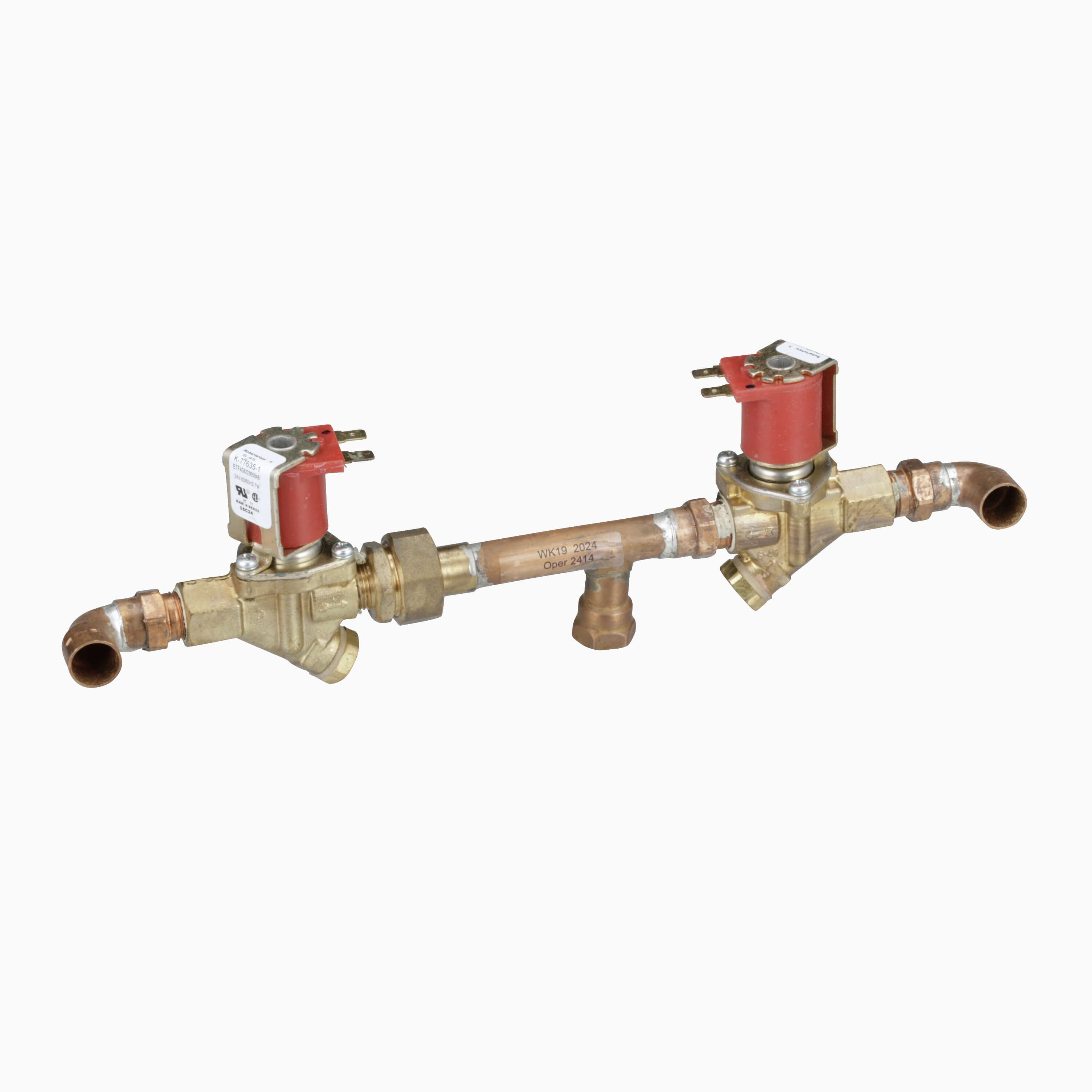

Sloan MCR-101-CA Product code 0375291
The Sloan MCR-101-A Single-Line Mixing Manifold is used with the Sloan PWT System to manage water usage and activations. The MCR-101-A manifold contains two electronically activated solenoids used to supply hot, cold, and mixed water to a single plumbing fixture. The manifold contains 1/2" pipe copper solder unions at water inlets and a soft nose union between solenoids. The MCR-101-A solenoid operating voltage is 24 VAC – 50/60 Hz. The unit includes 15’ cable w/ 6 position, 4 pin RJ-11 connector to connect to Sloan PWT MCR-Series Controllers. The MCR-101-A is a high-quality and durable copper body mixing manifold designed for use with large commercial facilities looking to manage water usage and activations with the Sloan PWT Systems.
- Product type
- Accessories
- Model
- MCR-101-CA
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
Selected reference
0375291
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
- Installation
- Confirm installation requirements with Aquatop
Official Sloan resources
Programmed Water Technologies (PWT) BrochureBrochure0375291 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Manifold containing two electronically activated solenoids used to supply hot, cold and mixed water to a lavatory fixture
- 1/2 Inch Pipe Copper Solder Unions at water inlets
- Soft Nose Union between solenoids
- Two 3/8 NPT to 3/8 Tube
- One 0.5 gpm Flow Orifice
- One 3/8 NPT to 3/8 NPT Coupling
- 10 feet 3/8 OD Nylon Tubing
- 24 VAC – 50/60 Hz Solenoid Operating Voltage, 12 VA (500mA) In Rush; Holding 4.63 VA (193 mA), 7W Consumption
- Brass body with integral ‘Y’ strainer (80 Mesh)
- Stainless Steel Valve Seat
- Includes 15’ cable w/ 6 position, 4 pin RJ-11 connector to connect to Sloan MCR-Series Controller
- Solenoid cable length can be increased to a maximum overall length of 200 feet with additional PWT extension cord kits
Key features
BAA Compliant
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
