Pwt™Model MCR-224
Sloan MCR-224 Product code 3375024

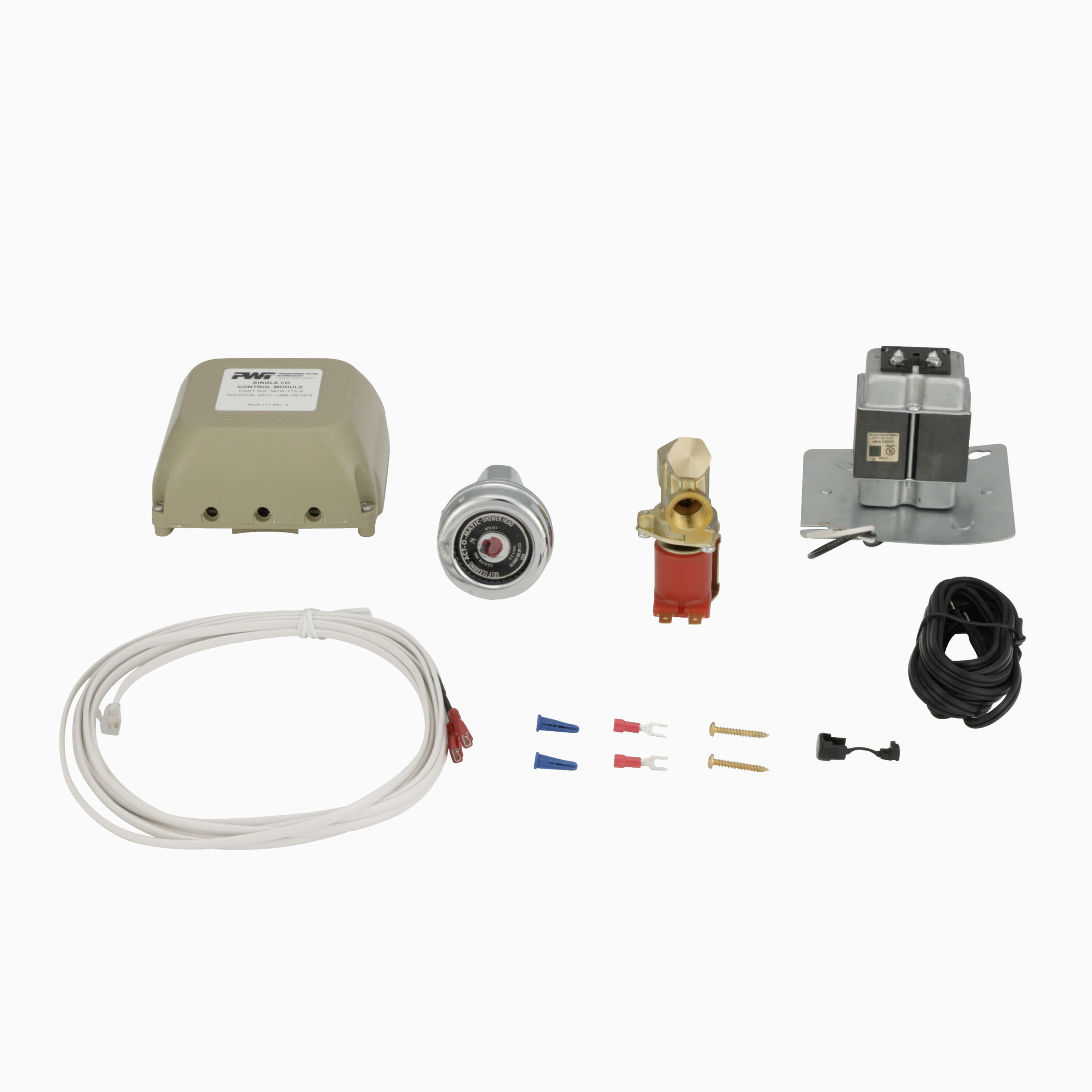

The Sloan MCR-224 Shower System is used with the Sloan PWT System to manage water usage and activations. The MCR-224 Shower System is used to control a single pre-mixed or tempered water line and operates on a 24 VAC transformer. The MCR-224 uses a push-button for activation and the run-time is adjustable. The pushbutton is specified per appliaction and sold seprately.The Shower System includes the following components: AC-450 Act-O-Matic self-cleaning institutional-style shower head, MCR-115-A Control Module, MCR-139-A Solenoid, EL-154 120VAC / 24 VAC Transformer, and ETF-458-A 20' Power Cord Kit. The MCR-224 Push-button Shower System is perfect for both public or private shower's where the facility is looking to manage run-times and water usage to prevent misuse and promote water conservation.
- Product type
- Accessories
- Model
- MCR-224
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
Selected reference
3375024
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
- Installation
- Confirm installation requirements with Aquatop
Official Sloan resources
Programmed Water Technologies (PWT) BrochureBrochure3375024 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Infrared, sensor-activated shower control for single, pre-mixed shower
- Water run-times and sensor range are adjustable
- Control module may be located remotely as far as 35 feet from sensor using additional PWT extension cord kits
- Waterproof, NEMA 6-compliant sensor module
- Diagnostic LED indicators in control module
- May be paired with Sloan Act-O-Matic Standard or Institutional style showerheads
Key features
BAA Compliant
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
