Pwt™Model MCR-322A-4

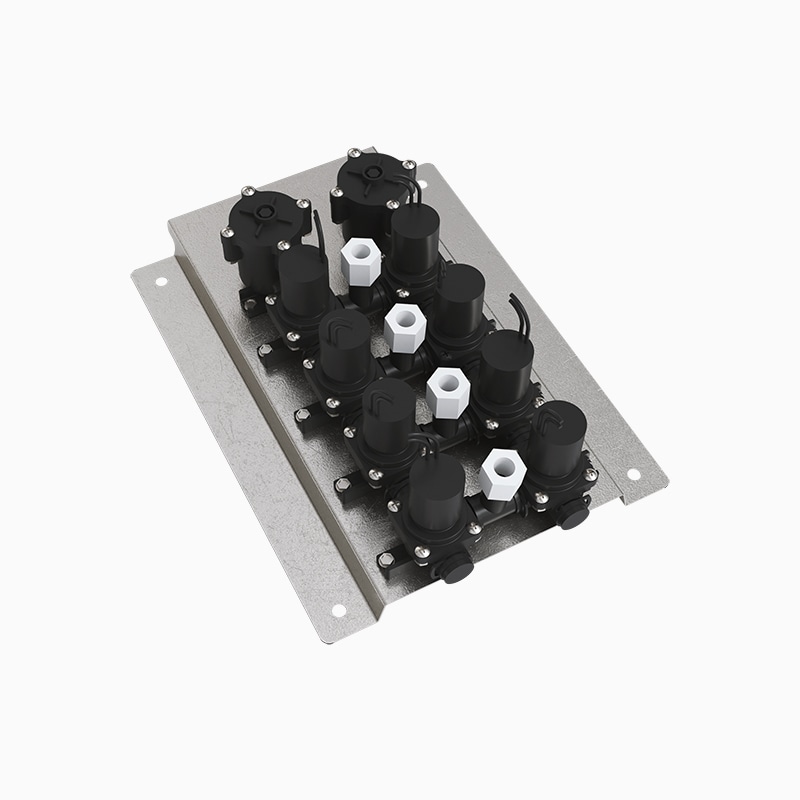

Sloan MCR-322A-4 Product code 3375071
The Sloan MCR-322A-4 Four-Line mixing manifold is used with the Sloan PWT System to manage water usage and activations. The MCR-322A-4 Manifold contains eight electronically activated solenoids used to supply 0.5 GPM hot, cold, and mixed water to multiple plumbing fixtures. The manifold controls water run-times to lavatory fixtures used in conjunction with Sloan MCR-Series controllers. The MCR-322A-4 comes with the complete mounting system for easy installation with a small footprint The MCR-322A-4 is a high-quality and durable mixing manifold designed for use with large commercial facilities looking to manage water usage and activations with the Sloan PWT Systems.
- Product type
- Accessories
- Model
- MCR-322A-4
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
Selected reference
3375071
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
- Installation
- Confirm installation requirements with Aquatop
Official Sloan resources
Programmed Water Technologies (PWT) BrochureBrochurePWT MCR-321 Series Manifold Installation InstructionsInstallation guide3375071 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Manifold containing eight solenoids used to supply hot, cold and mixed water to four lavatory fixtures
- Controls water run-times to lavatory and shower fixtures
- Used in conjunction with PWT control modules
- Small footprint
- Complete mounting system
- Back-check valves and hoses included
- Easy installation
- Connects to Sloan PWT MCR-Series Controller
- 0.5 gpm
- 160 degrees Fahrenheit maximum water temperature
- Fixtures require water pressure of at least 0.35 PSI flowing
- Recommended maximum pressure of 0.75 PSI
- Dimensions: 14.38" x 10.35" x 4.05"
Key features
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
