Pwt™Model MCR-323ST-1

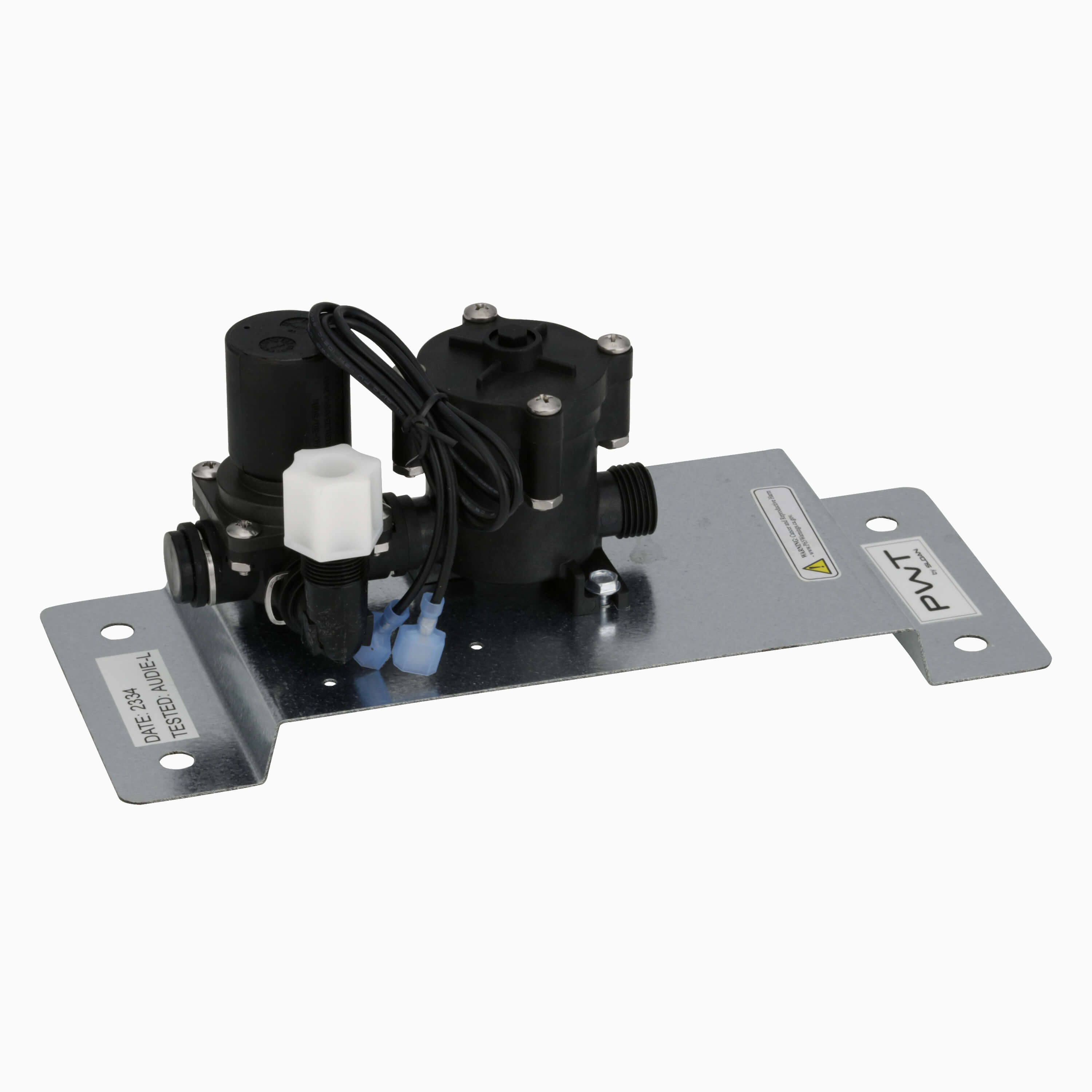

Sloan MCR-323ST-1 Product code 33750008
The Sloan MCR-323ST-1 Single station and temperature manifold is used with the Sloan PWT System to manage water usage and activations. The MCR-323ST-1 Manifold contains one electronically activated solenoid used to supply 2.5 GPM mixed water to a plumbing fixture. The manifold controls water run-times to shower fixtures used in conjunction with Sloan MCR-Series controllers. The MCR-323ST-1 comes with the complete mounting system for easy installation with a small footprint. The MCR-323ST-1 is a high-quality and durable mixing manifold designed for use with large commercial facilities looking to manage water usage and activations with the Sloan PWT Systems.
- Product type
- Accessories
- Model
- MCR-323ST-1
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
Selected reference
33750008
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
- Installation
- Confirm installation requirements with Aquatop
Official Sloan resources
Programmed Water Technologies (PWT) BrochureBrochurePWT MCR-321 Series Manifold Installation InstructionsInstallation guide33750008 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Single station, Single Temperature ASM manifold
- Manifold contains one solenoid used to provide mixed water to one fixture
- Controls water run-times to lavatory and shower fixtures
- Used in conjunction with PWT control modules
- Small footprint
- Complete mounting system
- Back-check valves and hoses included
- Easy installation
- Connects to Sloan PWT MCR-Series Controller
- Specifications: 2.5 GPM
- 160 degrees Fahrenheit maximum water temperature
- Fixtures require water pressure of at least 0.35 PSI flowing
- Recommended maximum pressure of 0.75 PSI
Key features
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
