Pwt™Model MCR-325

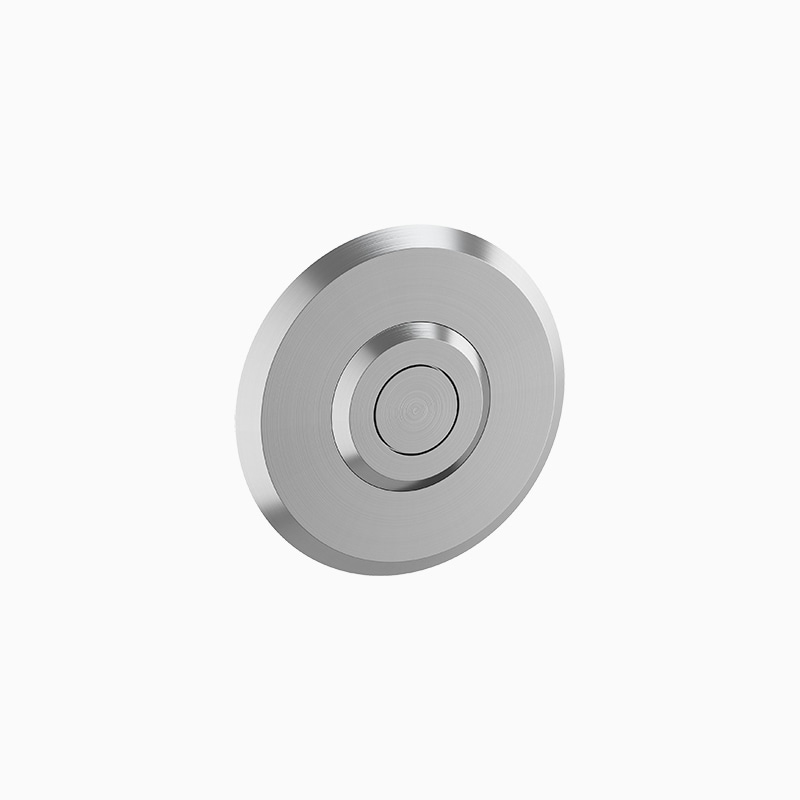

Sloan MCR-325 Product code 3375073
The Sloan MCR-325 Piezo Push-button is used with the Sloan 8603 PWT Flushometer to initiate activations of plumbing fixtures. This push-button includes a universal mounting system and can be installed directly to the fixture panel or through-wall up to 12" thick. The MCR-325 universal mounting kit comes with an optional flange, threaded rod, locking nut, and wall sleeve. The cable connections on the MCR-325 also include white arrows to make the connection with the Sloan 8603 PWT flushometer quick and easy. The MCR-325 Piezo Push-button is a high-quality and durable push-button designed for use with large commercial facilities looking to manage water usage and activations with the Sloan PWT 8603 Flushometers.
- Product type
- Accessories
- Model
- MCR-325
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
Selected reference
3375073
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
- Installation
- Confirm installation requirements with Aquatop
Official Sloan resources
Programmed Water Technologies (PWT) BrochureBrochurePWT MCR324-L _ MCR-325 Button Installation InstructionsInstallation guide3375073 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Wall fixture Button used with Sloan 8603-ESM PWT flushometers.
- Universal mounting system
- Up to 12" wall thickness
- White arrows on cables for easy alignment
Key features
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
