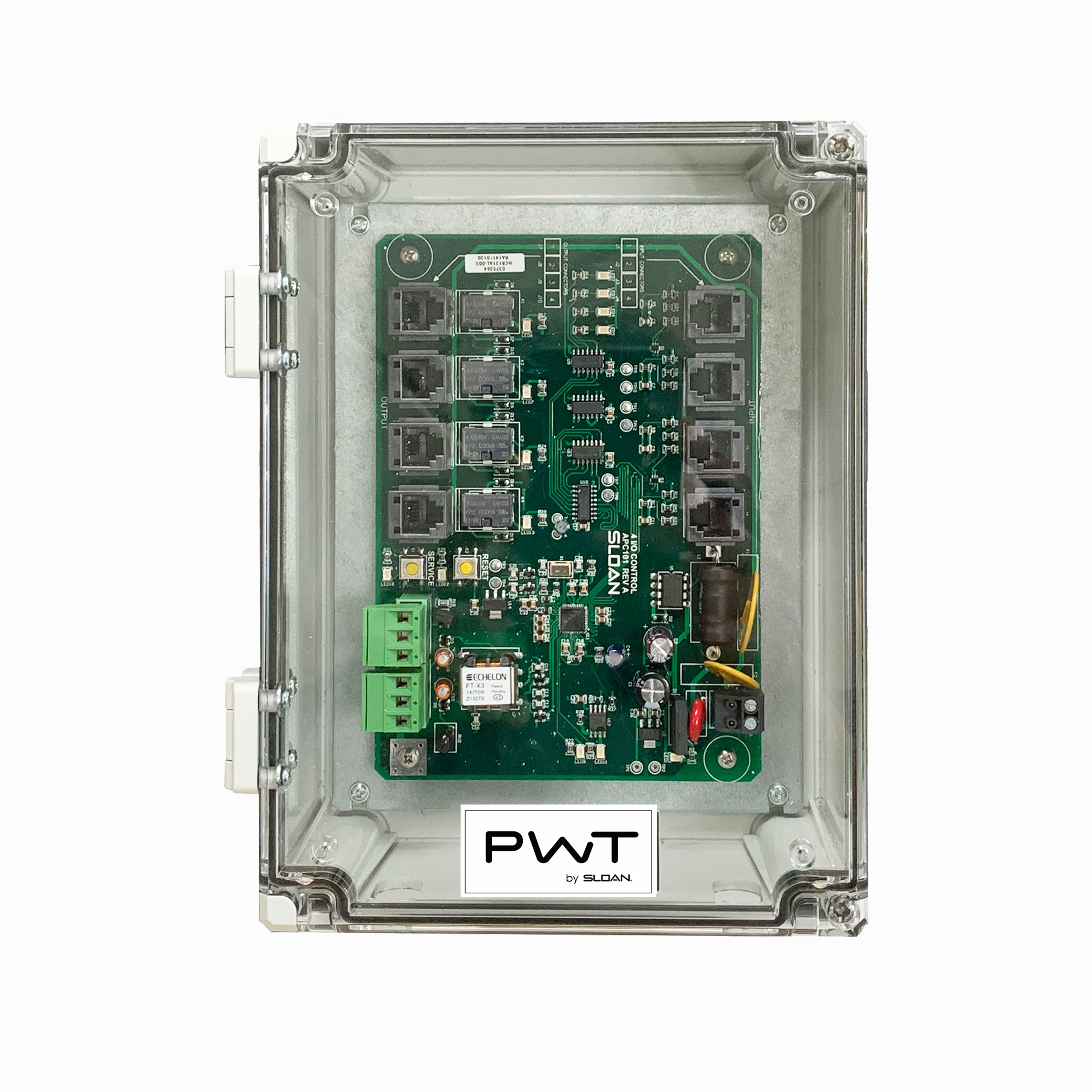

Sloan MCR-4001 Product code 0375375

PWT System 4-I/O Twisted Pair Communicating Controller

Product type: Accessories
Model: MCR-4001
Dimensions: See official Sloan specification sheet
Installation: Confirm installation requirements with Aquatop

Selected reference

0375375

Check availability Call 16734

Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.

Planning data

Details and installation

Dimensions: See official Sloan specification sheet
Installation: Confirm installation requirements with Aquatop
Installation: Confirm installation requirements with Aquatop

Official Sloan resources

Programmed Water Technologies (PWT) BrochureBrochure Programmed Water Technologies (PWT) System Overview GuideProduct Guide 0375375 product specificationSpecification sheet

View official Sloan product page

Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.

Features and design

Four input/output controller used with PWT push buttons, electronic flushometers and solenoids to control water closets, lavatories and showers.
Can connect to a computer managed, FT-10 (twisted pair) network.Operates on 24 VAC–50/60 Hz
Can operate as “Stand Alone” controller or integrated into a computer managed network with PWT Water Management Software
LonMark compliant
RJ-11, 6 position, 4 pin connections for all input and output devices
Plug-in type terminal blocks with screw clamp wire connections for network twisted pair wire connections
Fuse protection on 24 VAC power supply
Patented delay and lockout capabilities on water closet
Delay before and/or after runtime available on lavatories and showers
Input and output diagnostic LEDs

Key features

BAA Compliant

Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
