OptimaModel MIX-60-A

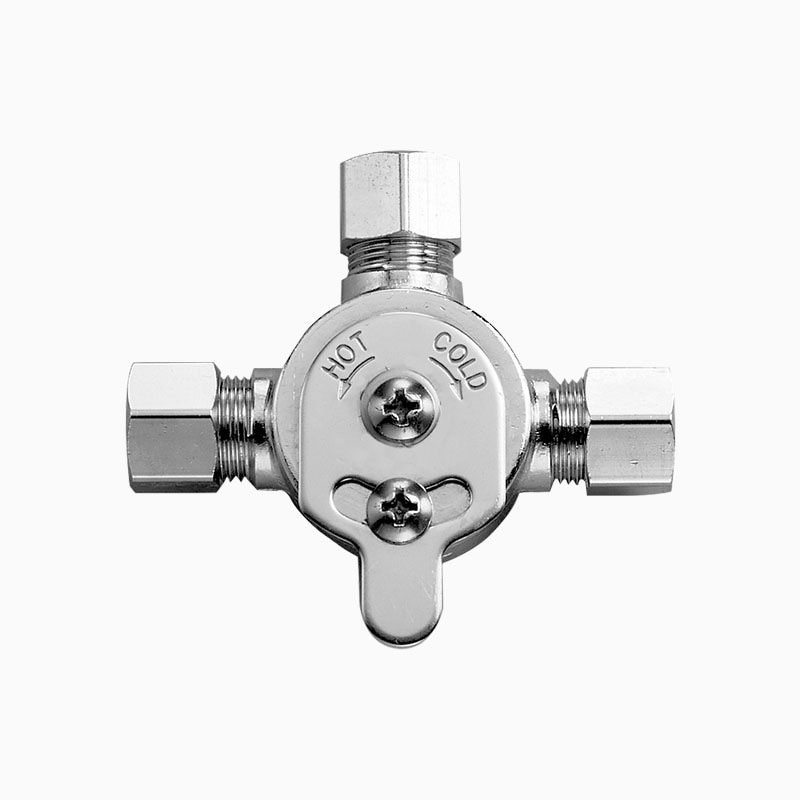

Sloan MIX-60-A Product code 3326009
The MIX-60-A mixing valve kit is a comprehensive and reliable solution for managing the temperature flow of water in commercial restroom. This product is a below deck mixer which means it is installed beneath the sink and provides manual control over the water supply for your Sloan faucet. The MIX-60-A manual mixing valve is a standout feature of this kit. With its easy to use controls, users can manually adjust the amount of hot or cold water that feeds into the tempered water supply, ensuring a consistent and comfortable water temperature at all times. This precise control over water temperature is especially important in high-traffic restrooms. Installation and maintenance of the MIX-60-A mixing valve is straightforward, making it easy for facilities to upgrade their restroom fixtures. This kit includes everything needed for installation, including the mixing valve, inlet and outlet connections, and mounting hardware.
- Product type
- Accessories
- Model
- MIX-60-A
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
Selected reference
3326009
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Confirm installation requirements with Aquatop
- Installation
- Confirm installation requirements with Aquatop
Official Sloan resources
View official Sloan product pageInformation is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Designed to install under the lavatory
- Supplied with Sloan Optima and Optima Plus faucets that are specified with the “BDM” (Below-Deck-Mixer) variation
- Installs in place of the Tee fitting supplied with the faucet prior to the solenoid valve
- Equipped with integral check valves at inlets
- 3/8” compression fittings on inlets and outlet
- Compression sleeves and nuts included
- Lever dial adjustment with lock screw: COLD-HOT
- Brass construction
- Chrome plated finish
Key features
IAPMOUPC Low Lead Certified
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
