SolisModel SOLIS 8110 TRK

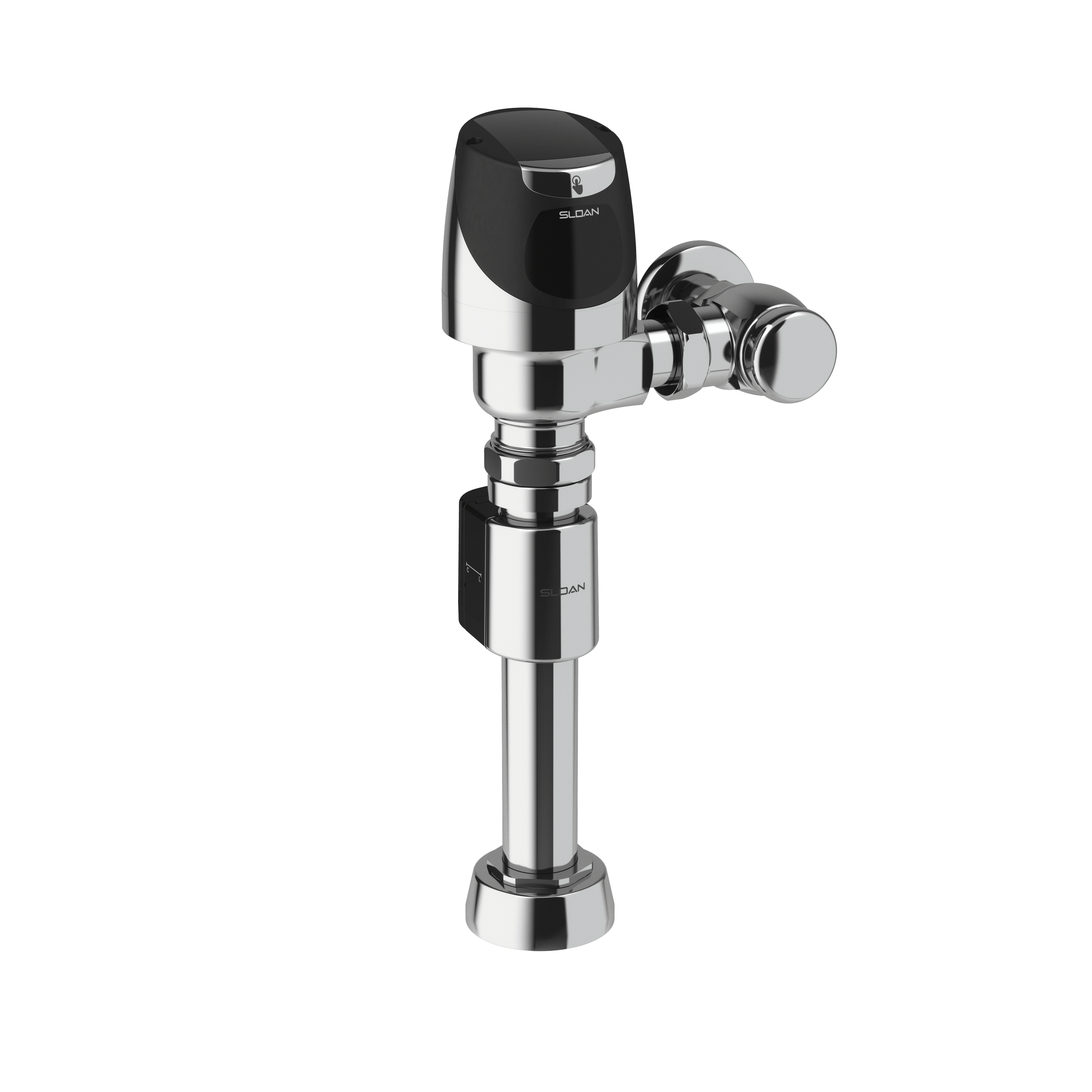

Sloan SOLIS 8110 TRK Product code 33700045
The SOLIS Flushometer with Sloan Track-on™ Run-on Detector is a smart system designed to alert users of a run-on condition of over 30 seconds.
- Product type
- Flushometers
- Model
- SOLIS 8110 TRK
- Dimensions
- See official Sloan specification sheet
- Installation
- Exposed
Selected reference
33700045
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Exposed
- Installation
- Exposed
Official Sloan resources
SOLIS 8110 BIM ModelBIM fileFlushometers BrochureBrochureIoT SC Argus Pro Smart Restroom BrochureBrochureSolis 8100 Series (Spanish) Installation InstructionsInstallation guideSloan Track-on Run-on Detector V700AA Vacuum Breaker Tube - Flushometer Retrofit Installation InstructionsInstallation guideFlushometer Parts Maintenance ScheduleMaintenance guideExposed Solis Repair and Maintenance GuideMaintenance guideSloan Track-on Run-on Detector V700AA Vacuum Breaker Tube - Flushometer Retrofit Repair and Maintenance Guide.pdfMaintenance guideSloan Track-on Run-on Detector Sell SheetSell SheetSOLIS 8110 TRK general specificationSpecification sheet33700045 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Main Seat, Stop Seat and Vacuum Breaker Molded from PERMEX Rubber Compound for Chloramine resistance
- PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- “Low Battery” Flashing LED
- Sweat solder adapter with cover tube and cast wall flange with set screw
- State-of-the-art photovoltaic technology delivers solar operation
- Four (4) Size AA Battery Power Source
- Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- High copper, low zinc brass castings for dezincification resistance
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Key features
SensorADA CompliantcUPC CertifiedIAPMO
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
