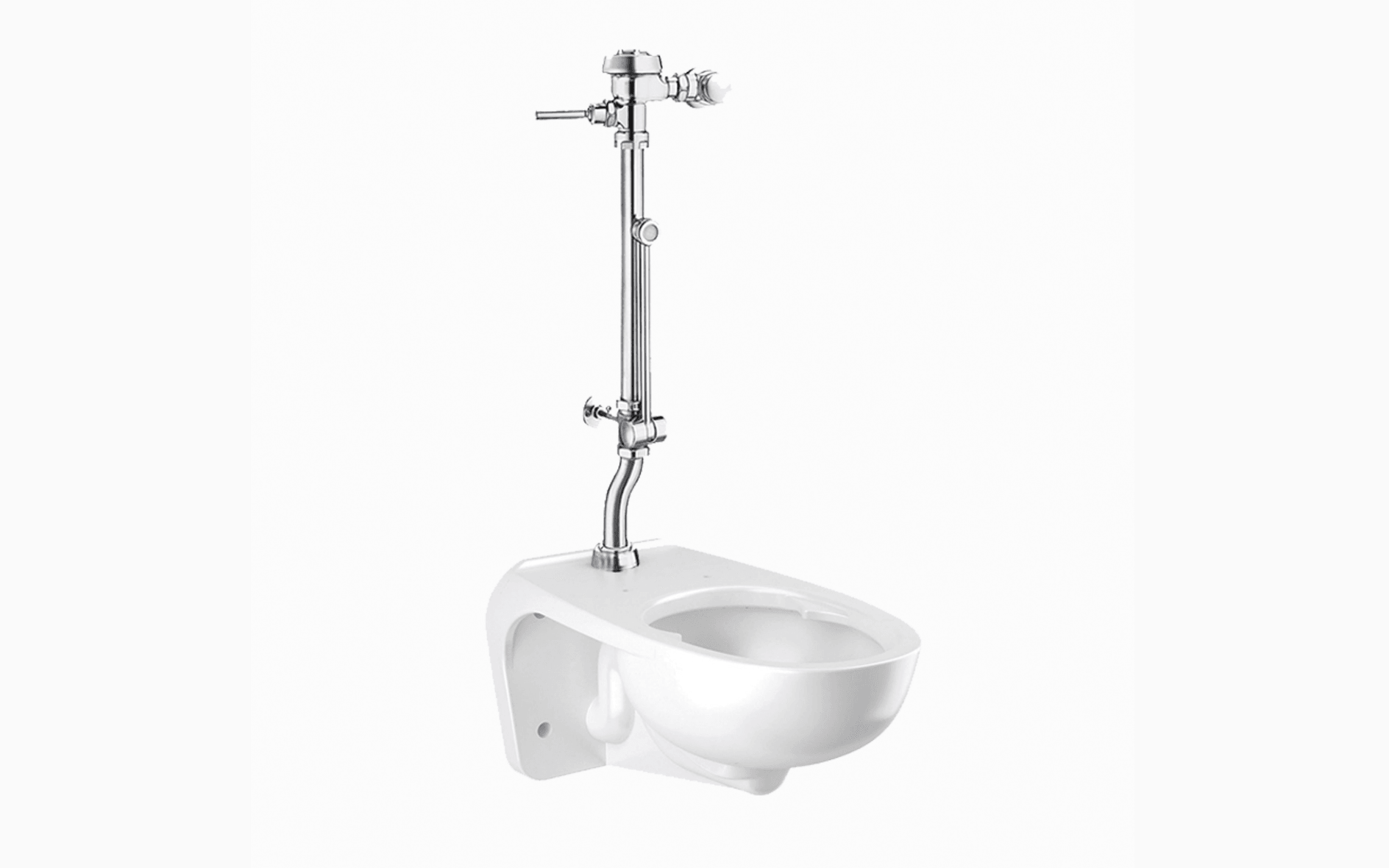

Sloan WETS-2450.2002 Product code 24502002

Features and design

• Maximum static load rating of 1,000 lbs when installed on an appropriate wall carrier support system (not recommended for bariatric use)
• Exposed water closet, diaphragm type, chrome-plated Flushometer for floor-mounted or wall-hung top spud bowls and for installation where clearance is required around grab bars
• Meets ADA height requirements
• Automatically operates by means of a self-adaptive infrared sensor
• Presents a leaner, more aesthetic installation, reducing possible bacteria growth on hidden and hard-to-reach surfaces found on other bedpan washer units
• Eliminates the need for unsanitary hose sprays, as well as the additional housekeeping that hoses require and the potential for patient slippage
• Incorporates a patented one-piece construction body design, maintaining the spray arm in an upright position
• Valve body, stop body, diverter body and diverter pivot made from brass casting using semi-red brass for durability and long life
• High chloramine resistant PERMEX Synthetic Rubber Diaphragm with Linear Filtered Bypass and Vortex Cleansing Action
• Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
• Valve shall be in compliance to the applicable sections of ASSE 1037
• Designed to maximize and complement Sloan flushometers
• Universal model works with Sloan flushometers from 1.1 to 1.6 gpf
• Durable, hygienic vitreous china construction with elongated rim
• Syphon jet flushing achieves 1000g Map Scores when used with Sloan flushometers
• IAPMO certified to meet or exceed ASME A112.19.2 standards

Key features

Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
