Official product media

Product reference

10061421

Selected finishWEUS-1006.1421-1.0-CP-TMO · Polished Chrome · 1.0[3.8] · Battery

Official product view01 / 01

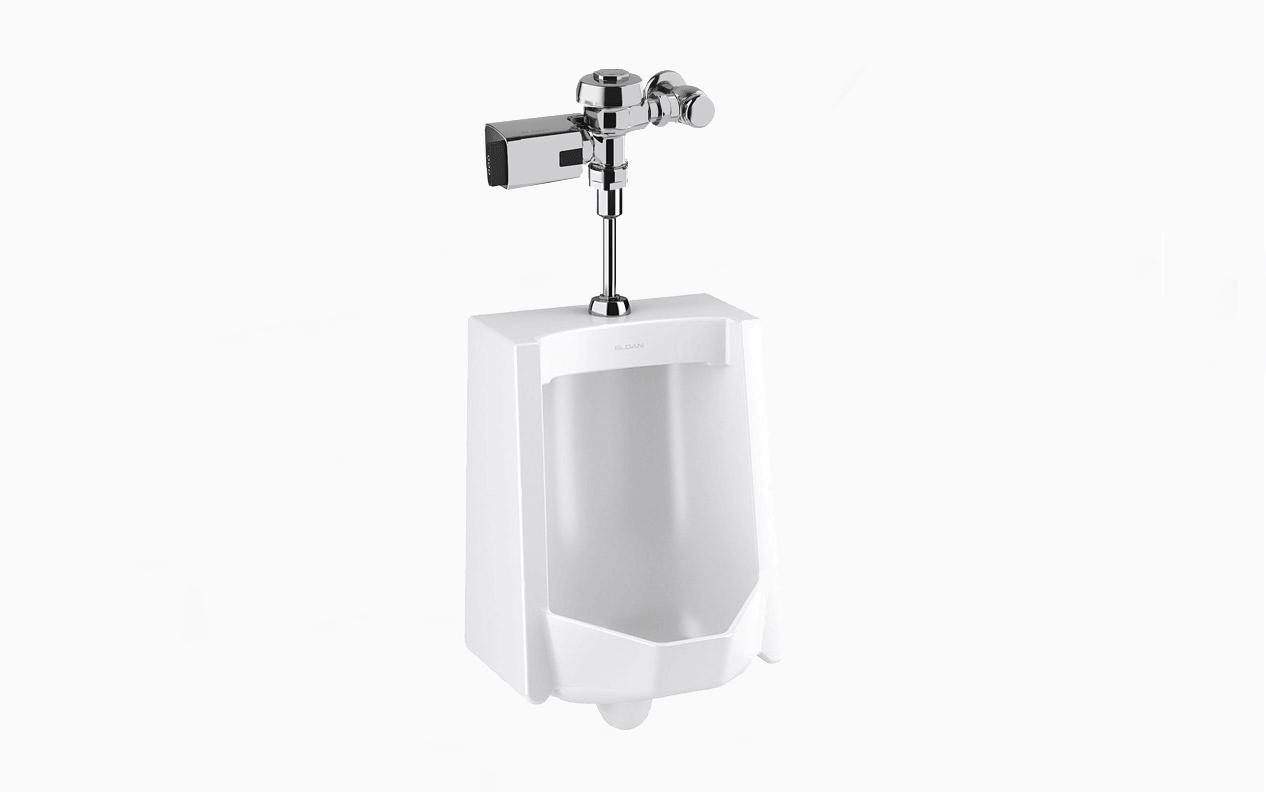

RoyalModel WEUS-1006.1421

Sloan WEUS-1006.1421 Product code 10061421

SU-1009 Urinal and ROYAL 186 SFSM Flushometer

Product type: Urinal Combos
Model: WEUS-1006.1421
Dimensions: See official Sloan specification sheet
Installation: Exposed

Selected reference

10061421

Check availability Call 16734

Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.

Planning data

Details and installation

Dimensions: See official Sloan specification sheet
Installation: Exposed
Installation: Exposed

Official Sloan resources

Royal Exposed Installation InstructionsInstallation guide Standard Spud Urinal Installation InstructionsInstallation guide EBV-500_550-A Installation InstructionsInstallation guide 10061421 product specificationSpecification sheet

View official Sloan product page

Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.

Features and design

Includes the required wall plate and a purple wall flange to let users know reclaimed water is in use
All organic rubber has been replaced with synthetic compounds
Optional purple handle provides additional indication of reclaimed water use
Critical components, including cover, valve body, control stop and sweat solder kit, are made of semi-red brass
PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
Valve shall be in compliance to the applicable sections of ASSE 1037
Designed to maximize and complement Sloan flushometers
Universal high-efficiency model works with 0.125, 0.25 and 0.5 gpf Sloan flushometers
Thorough washdown flushing action
Durable, hygienic vitreous china construction
Vandal resistant stainless steel strainer included
IAPMO certified to meet or exceed ASME A112.19.2 standards
Water Sense listed by EPA that qualifies for most rebate programs
Meets ADA guidelines and ANSI A117.1 requirements when installed accordingly

Key features

SensorADA CompliantBAA CompliantBREEAM Materials CreditCalGreen CompliantcUPC CertifiedEPDGreen Globes Materials & Resources CreditHPDIAPMOLEED Materials & Resources EPD CreditLEED Materials & Resources HPD Credit

Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
