Product reference
33525811-99
Selected finish · 1 of 7
CYOModel 33525811

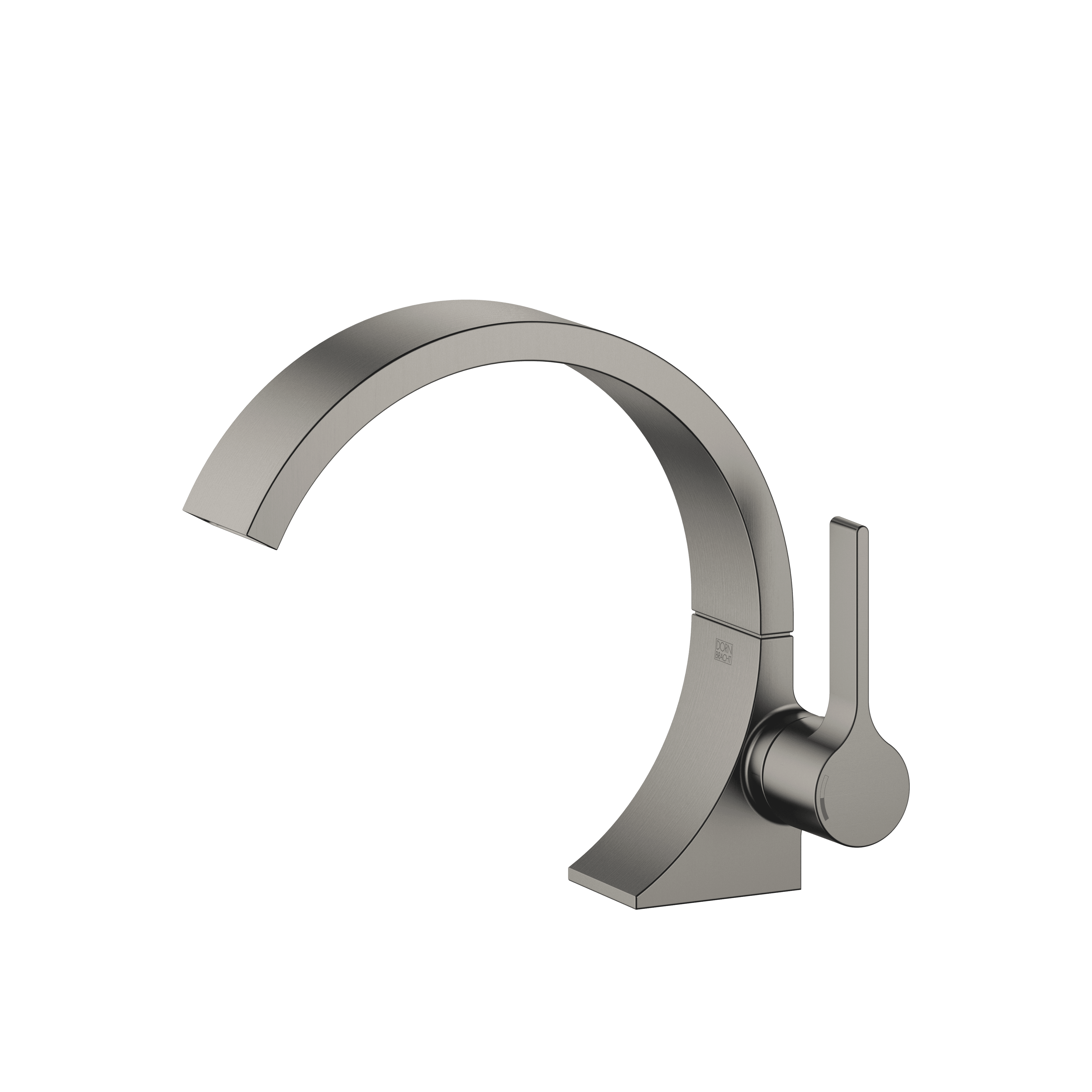

CYO Single-lever basin mixer without pop-up waste
Washstand faucets · Floor mounting · Single-lever mixer
Select finish
Brushed Dark Platinum- Article number
- 33525811-99
- GTIN
- 4029011847226
- Mounting
- Floor mounting
- Product type
- Single-lever mixer
Availability, compatibility, and final specification are confirmed by Aquatop before ordering.
Model 33525811
Article numbers by finish
Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.
| Finish | Article number | GTIN | Product view |
|---|---|---|---|
| Chrome | 33525811-00 | 4029011847189 | View finish |
| Brushed Bronze (PVD) | 33525811-42 | 4099477289571 | View finish |
| Brushed Dark Platinum | 33525811-99 | 4029011847226 | Selected |
| Brushed Durabrass (23kt Gold) | 33525811-28 | 4029011930621 | View finish |
| Brushed Platinum | 33525811-06 | 4029011847202 | View finish |
| Dark Chrome | 33525811-19 | 4099477129051 | View finish |

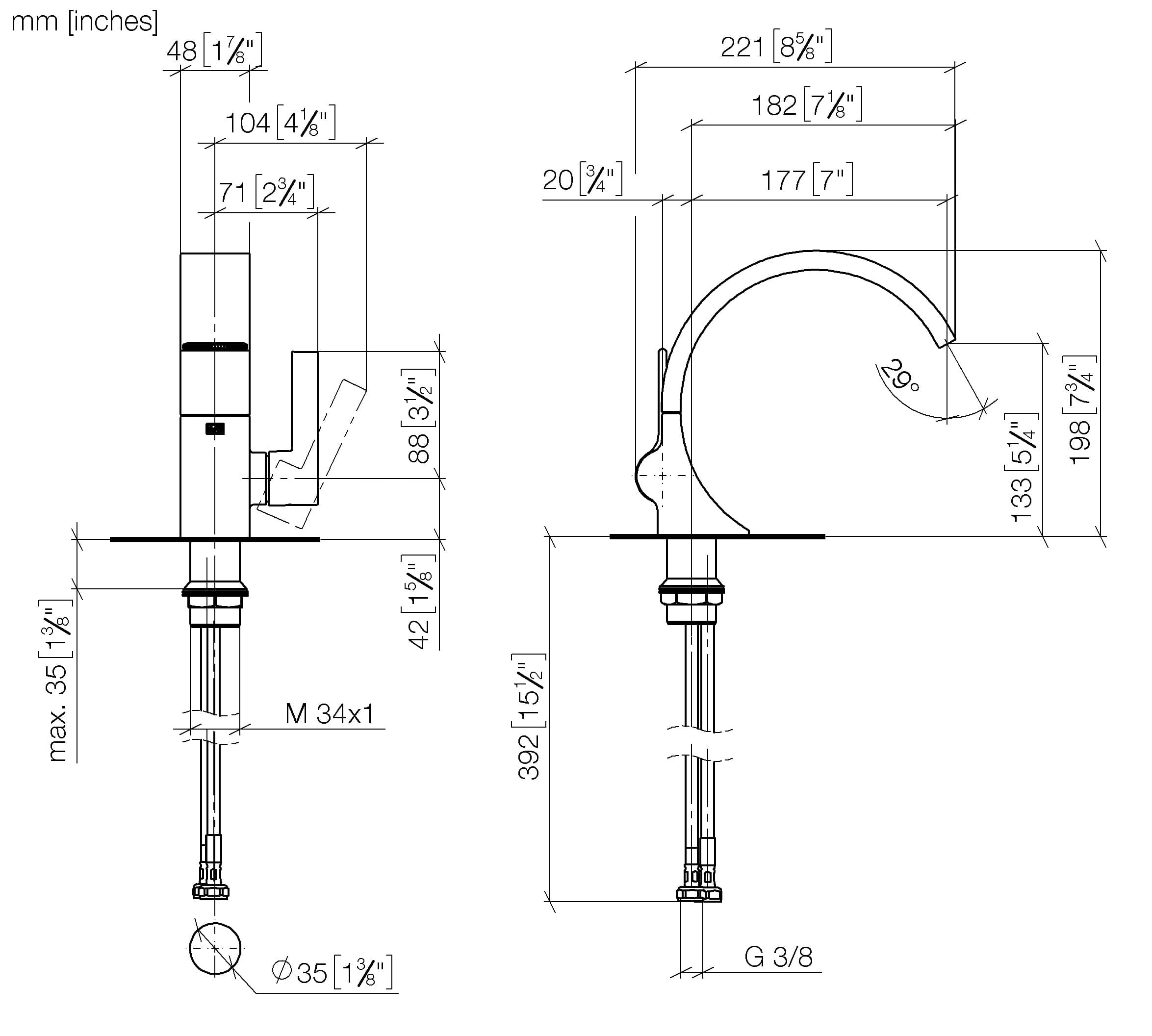

Technical details
- 177mm projection
- fixed spout
- rectangular, air-enriched flow
- height of mixer 198 mm
- height up to aerator 133 mm
- hole diameter 35 mm
- 2x screw-in M 8 x 1 pressure hose, leak-tested
- max. flow 4.5 l/min
- lead-free
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
- WRAS
**Must not be combined with continuous-flow heaters heaters.** **Distance from centre of tap hole to wall min. 55 mm or to front edge of basin min. 40 mm.**
Documents and package data
- Package height
- 185 mm
- Package width
- 545 mm
- Package depth
- 210 mm
- Gross weight
- 3.15 kg
