Product reference
27803361-00
Selected finish · 1 of 10
MADISONModel 27803361

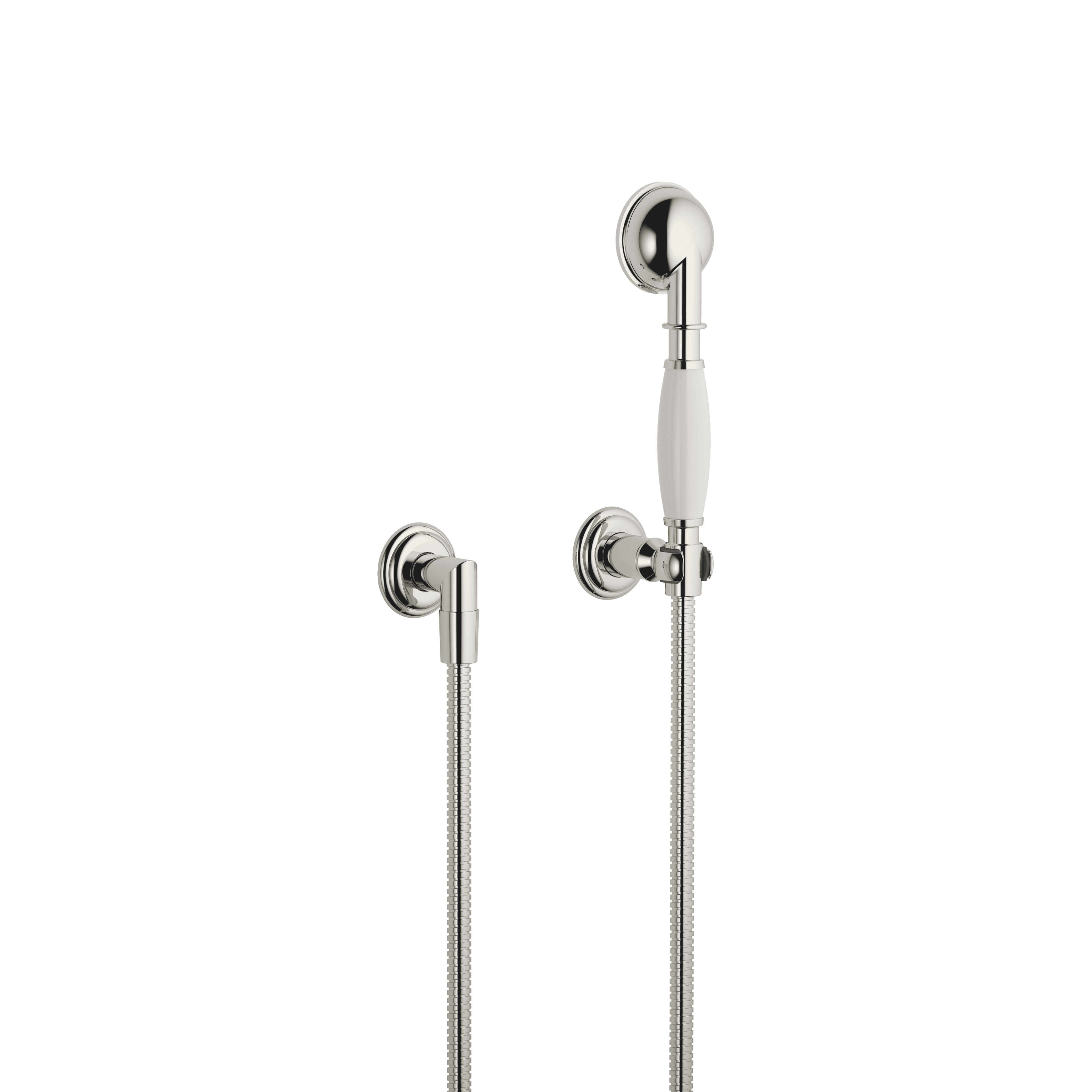

MADISON Hand shower set with individual rosettes
Showers · Spray sets · Hand shower sets with flanges
Select finish
Chrome- Article number
- 27803361-00
- GTIN
- 4029011718632
- Mounting
- Spray sets
- Product type
- Hand shower sets with flanges
Availability, compatibility, and final specification are confirmed by Aquatop before ordering.
Model 27803361
Article numbers by finish
Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.
| Finish | Article number | GTIN | Product view |
|---|---|---|---|
| Chrome | 27803361-00 | 4029011718632 | Selected |
| Brushed Bronze (PVD) | 27803361-42 | 4099477288499 | View finish |
| Brushed Dark Brass (PVD) | 27803361-39 | 4099477390550 | View finish |
| Brushed Dark Bronze (PVD) | 27803361-43 | 4099477488936 | View finish |
| Brushed Dark Platinum | 27803361-99 | 4029011802102 | View finish |
| Brushed Durabrass (23kt Gold) | 27803361-28 | 4029011898105 | View finish |
| Brushed Platinum | 27803361-06 | 4029011718618 | View finish |
| Durabrass (23kt Gold) | 27803361-09 | 4029011718571 | View finish |
| Platinum | 27803361-08 | 4029011718595 | View finish |

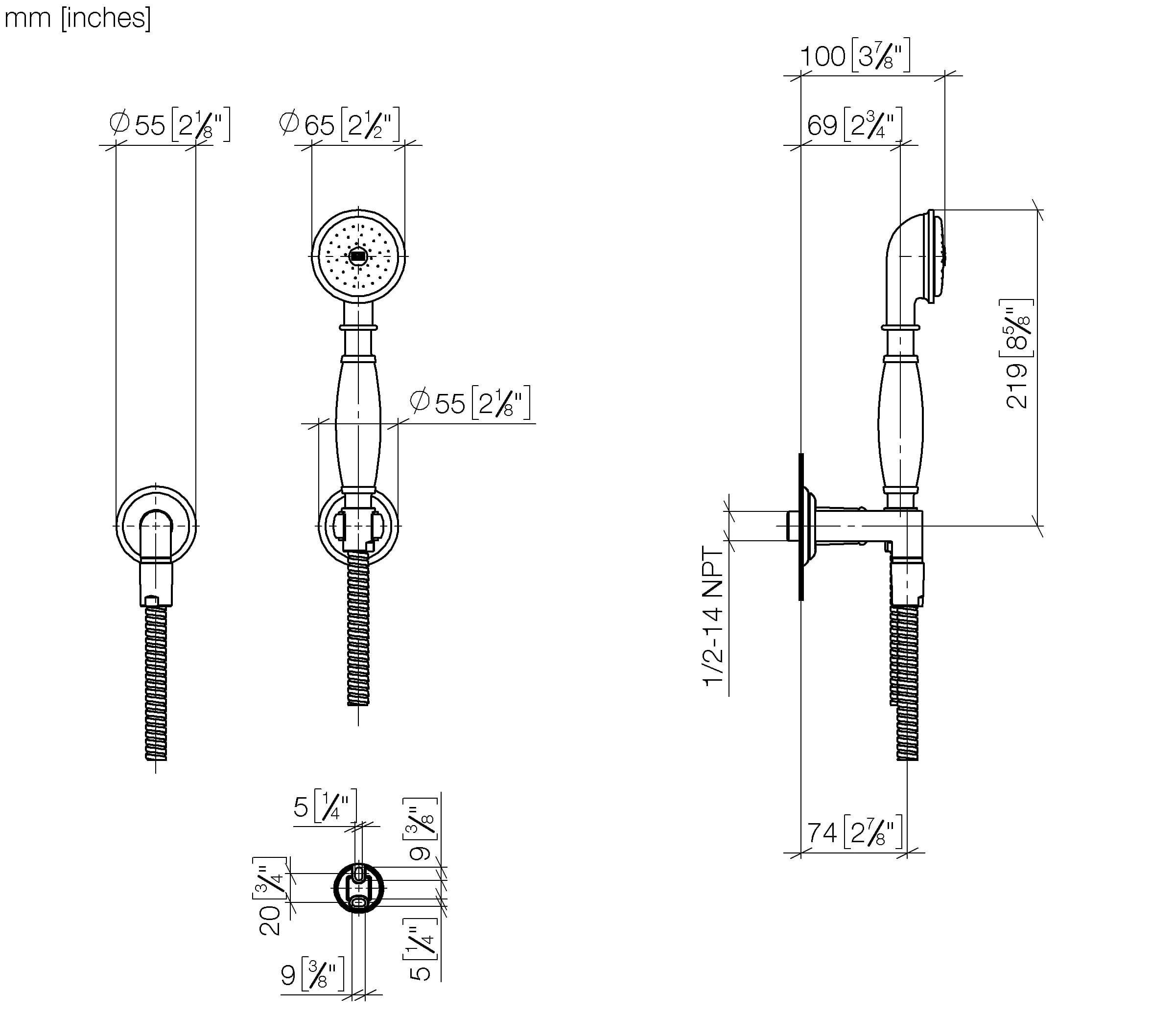

Technical details
- spray head Ø 64mm
- COMPACT RAIN, max. flow rate 9 l/min (at 3 bar)
- Function from: 6 l/min
- with anti-scale system
- inherently safe from back flow
- metal shower hose 1250mm with integrated anti-twist protection
- # technical data:
- rosette for wall elbow Ø 55mm
- rosette for shower holder Ø 55mm
- 1/2" wall elbow
- 1/2" shower outlet
- # Notes:
Documents and package data
- Package height
- 85 mm
- Package width
- 315 mm
- Package depth
- 210 mm
- Gross weight
- 1.4 kg
Optional accessories
3508597090
