Product reference
34459360-08
Selected finish · 1 of 10
MADISONModel 34459360

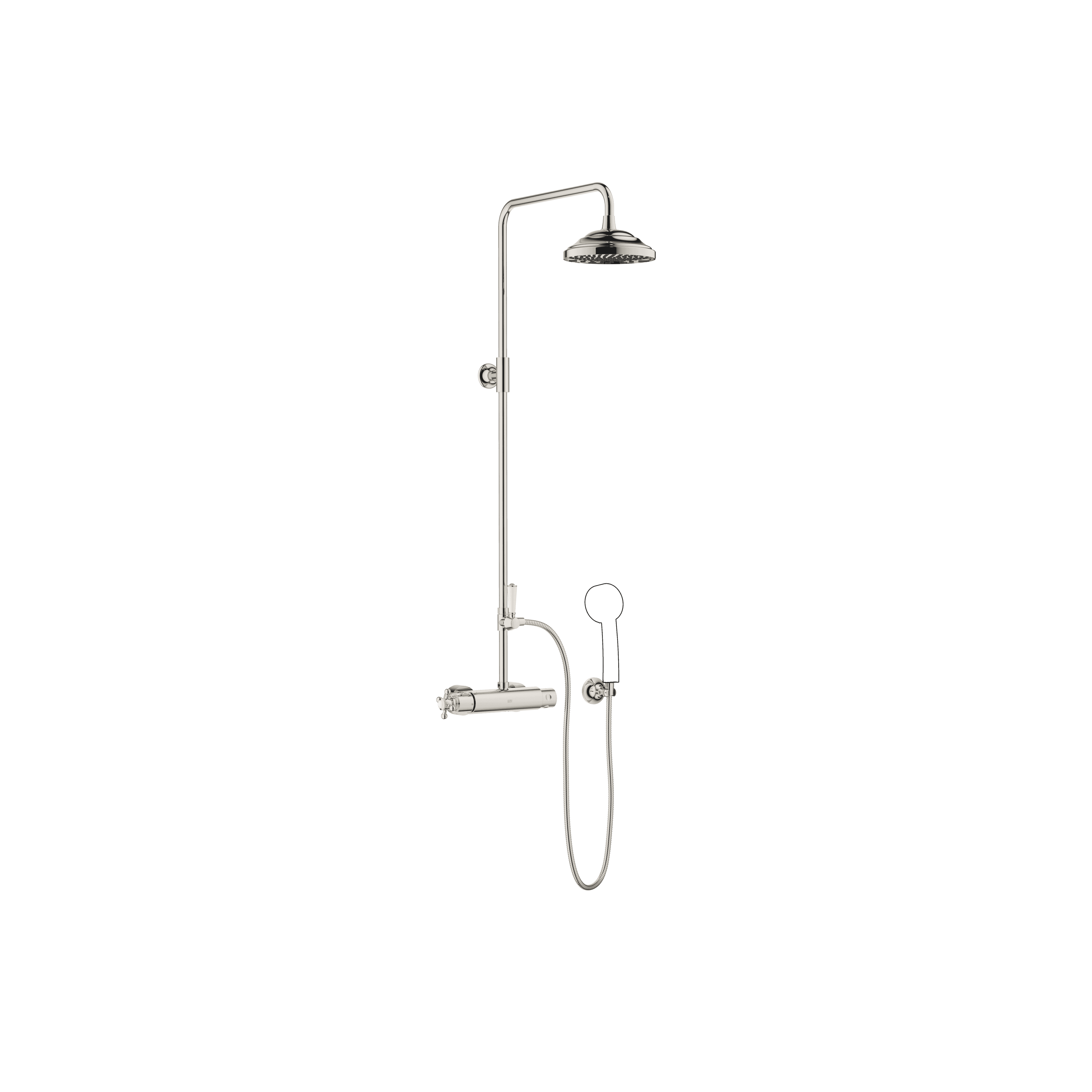

MADISON Showerpipe with shower thermostat without hand shower 200 mm
Showers · Shower systems · Shower Pipes
Select finish
Platinum- Article number
- 34459360-08
- GTIN
- 4029011912764
- Mounting
- Shower systems
- Product type
- Shower Pipes
Availability, compatibility, and final specification are confirmed by Aquatop before ordering.
Model 34459360
Article numbers by finish
Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.
| Finish | Article number | GTIN | Product view |
|---|---|---|---|
| Chrome | 34459360-00 | 4029011900860 | View finish |
| Brushed Bronze (PVD) | 34459360-42 | 4099477289694 | View finish |
| Brushed Dark Brass (PVD) | 34459360-39 | 4099477390826 | View finish |
| Brushed Dark Bronze (PVD) | 34459360-43 | 4099477490694 | View finish |
| Brushed Dark Platinum | 34459360-99 | 4029011920905 | View finish |
| Brushed Durabrass (23kt Gold) | 34459360-28 | 4029011920912 | View finish |
| Brushed Platinum | 34459360-06 | 4029011900884 | View finish |
| Durabrass (23kt Gold) | 34459360-09 | 4029011912757 | View finish |
| Platinum | 34459360-08 | 4029011912764 | Selected |
Technical details
- # Rain shower:
- rain shower Ø 200 mm
- Rain shower material: metal
- overhead shower: rain flow
- max. rainshower flow 14 l/min
- Function from: 8 l/min
- rain shower with anti-scale system
- # Hand shower:
- spray head Ø 95mm
- Three settings: COMPACT RAIN, COMPACT SOFT FLOW, COMPACT AQUAPRESSURE FLOW, max. flow rate l/min (at 3 bar)
- 1/2" connection
- with anti-scale system
- # Control element:
- rotary diverter for fixed-riser shower/hand shower
- two-part push-on rosette Ø 65 mm
- metal shower hose 1250mm with integrated anti-twist protection

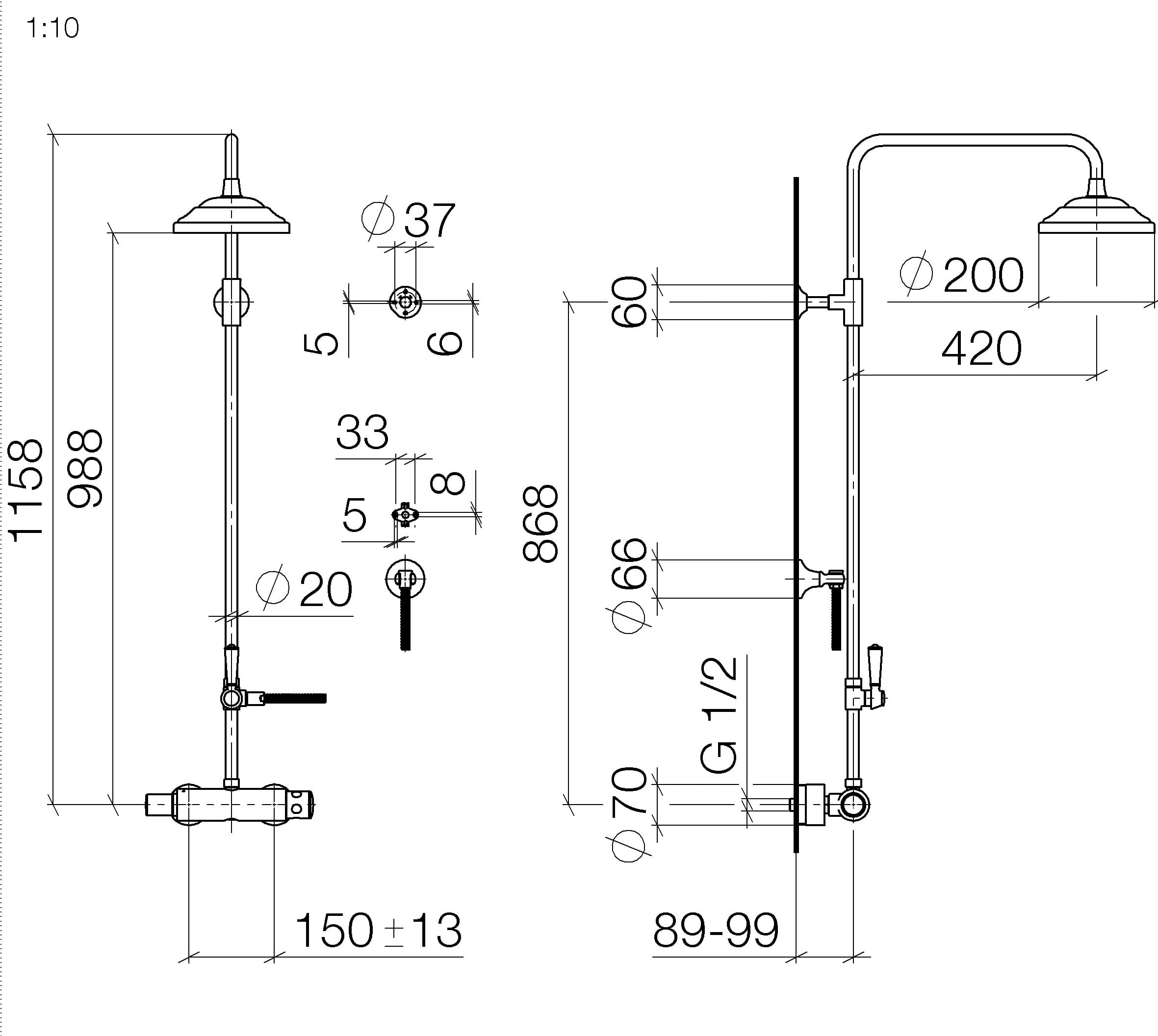

- # Technical data:
- shower with fixed riser projection 420mm
- height of fittings up to rain shower (bottom edge) 985mm
- height of fittings up to top edge of elbow 1160mm
- rosette for wall mounting Ø 60mm
- rosette for shower holder Ø 65mm
- Pipe diameter 20 mm
- gauge 150 mm - 13 mm
- # Notes:
- inherently safe from back flow
- This product can help a building meet the requirements of Green Building Rating Systems, e.g. LEED®, BREEAM®, DGNB
**This article does not include a hand shower!** **Intrinsic protection against back flow.** **NOTE:The handles must be ordered separately from the fittings!**
Documents and package data
- Package height
- 160 mm
- Package width
- 895 mm
- Package depth
- 395 mm
- Gross weight
- 9.12 kg
