SERIES SPECIFICModel 34469979

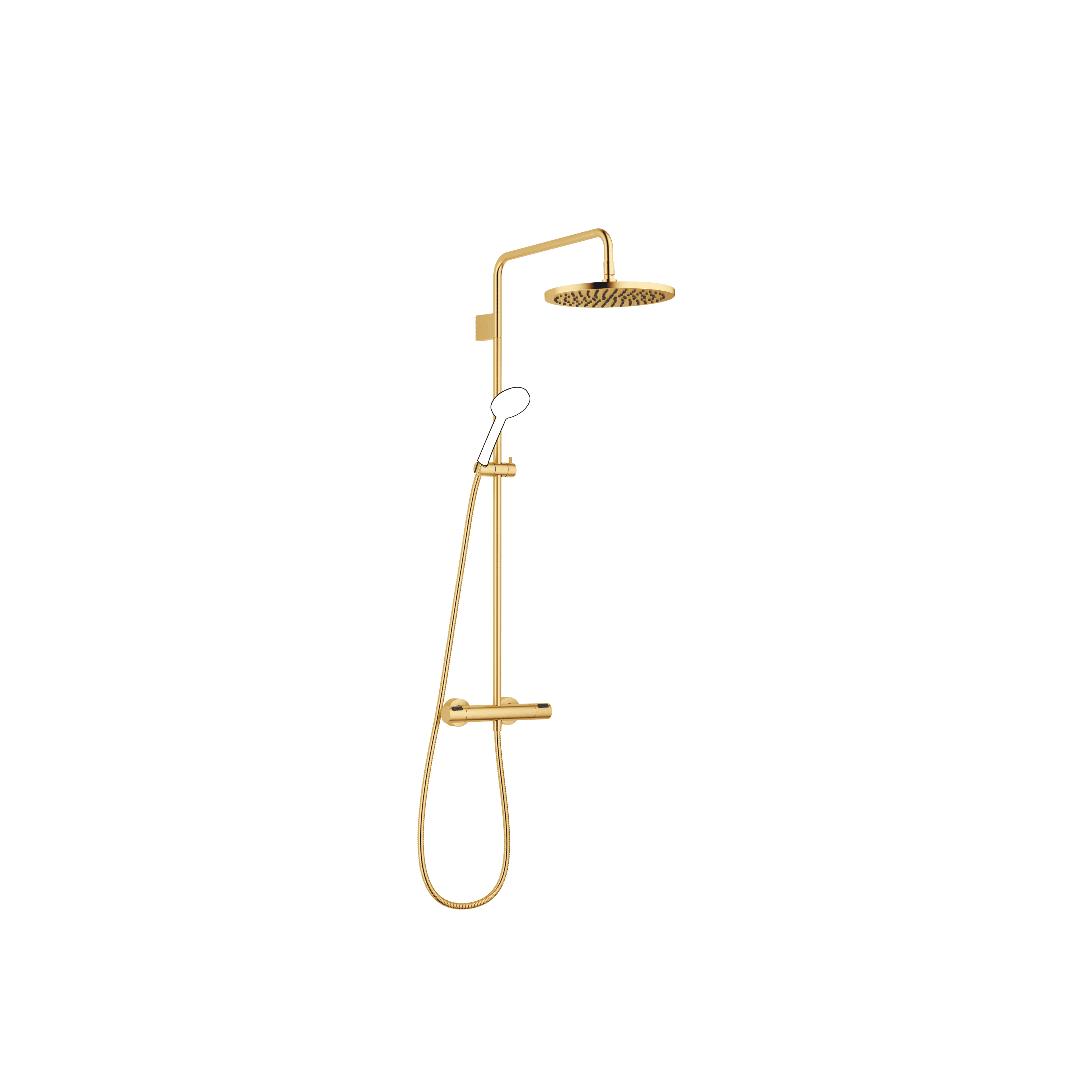

Shower pipe with shower thermostat with hand shower set 300 mm
Showers · Shower systems · Shower Pipes
Select finish
Brushed Gold (PVD)- Article number
- 34469979-37
- GTIN
- 4099477438054
- Mounting
- Shower systems
- Product type
- Shower Pipes
Availability, compatibility, and final specification are confirmed by Aquatop before ordering.
Model 34469979
Article numbers by finish
Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.
| Finish | Article number | GTIN | Product view |
|---|---|---|---|
| Chrome | 34469979-00 | 4099477419756 | View finish |
| Chrome | 34469979-000070 | 4099477419770 | View finish |
| Brushed Bronze (PVD) | 34469979-42 | 4099477441764 | View finish |
| Brushed Bronze (PVD) | 34469979-420070 | 4099477441795 | View finish |
| Brushed Chrome | 34469979-93 | 4099477419787 | View finish |
| Brushed Chrome | 34469979-930070 | 4099477419800 | View finish |
| Brushed Dark Platinum | 34469979-99 | 4099477441801 | View finish |
| Brushed Dark Platinum | 34469979-990070 | 4099477441832 | View finish |
| Brushed Gold (PVD) | 34469979-37 | 4099477438054 | Selected |
| Brushed Gold (PVD) | 34469979-370070 | 4099477438085 | View finish |
| Brushed Light Gold (PVD) | 34469979-27 | 4099477441689 | View finish |
| Brushed Light Gold (PVD) | 34469979-270070 | 4099477441719 | View finish |
| Dark Chrome | 34469979-19 | 4099477441603 | View finish |
| Dark Chrome | 34469979-190070 | 4099477441634 | View finish |
| Light Gold (PVD) | 34469979-26 | 4099477441641 | View finish |
| Light Gold (PVD) | 34469979-260070 | 4099477441672 | View finish |
| Matte Black | 34469979-33 | 4099477441726 | View finish |
| Matte Black | 34469979-330070 | 4099477441757 | View finish |
Technical details
- # Rain shower:
- rain shower Ø 300 mm
- Material rain shower: plastic
- PURE RAIN, max. flow rate 14 l/min (at 3 bar)
- Function from: 10 l/min
- rain shower with anti-scale system
- # Hand shower:
- spray head Ø 120mm
- COMPACT RAIN, max. flow rate 14 l/min (at 3 bar)
- hand shower with anti-scale system
- inherently safe from back flow
- # Control element:
- rotary diverter with volume control and shut-off function
- with FlowReduce function
- Plastic hose, 1750 mm, with integrated anti-twist protection
- slide bar
- # Technical data:
- shower with fixed riser projection 454mm
- height of fittings up to rain shower (bottom edge) 1009mm
- height of fittings up to top edge of elbow 1150mm
- slide-on rosettes Ø 70 mm
- gauge 150 mm - 13 mm
- Pipe diameter 20 mm
- 1/2" connection
Documents and package data
- Package height
- 1225 mm
- Package width
- 308 mm
- Package depth
- 660 mm
- Gross weight
- 1.58 kg
