SERIES SPECIFICModel 34459980

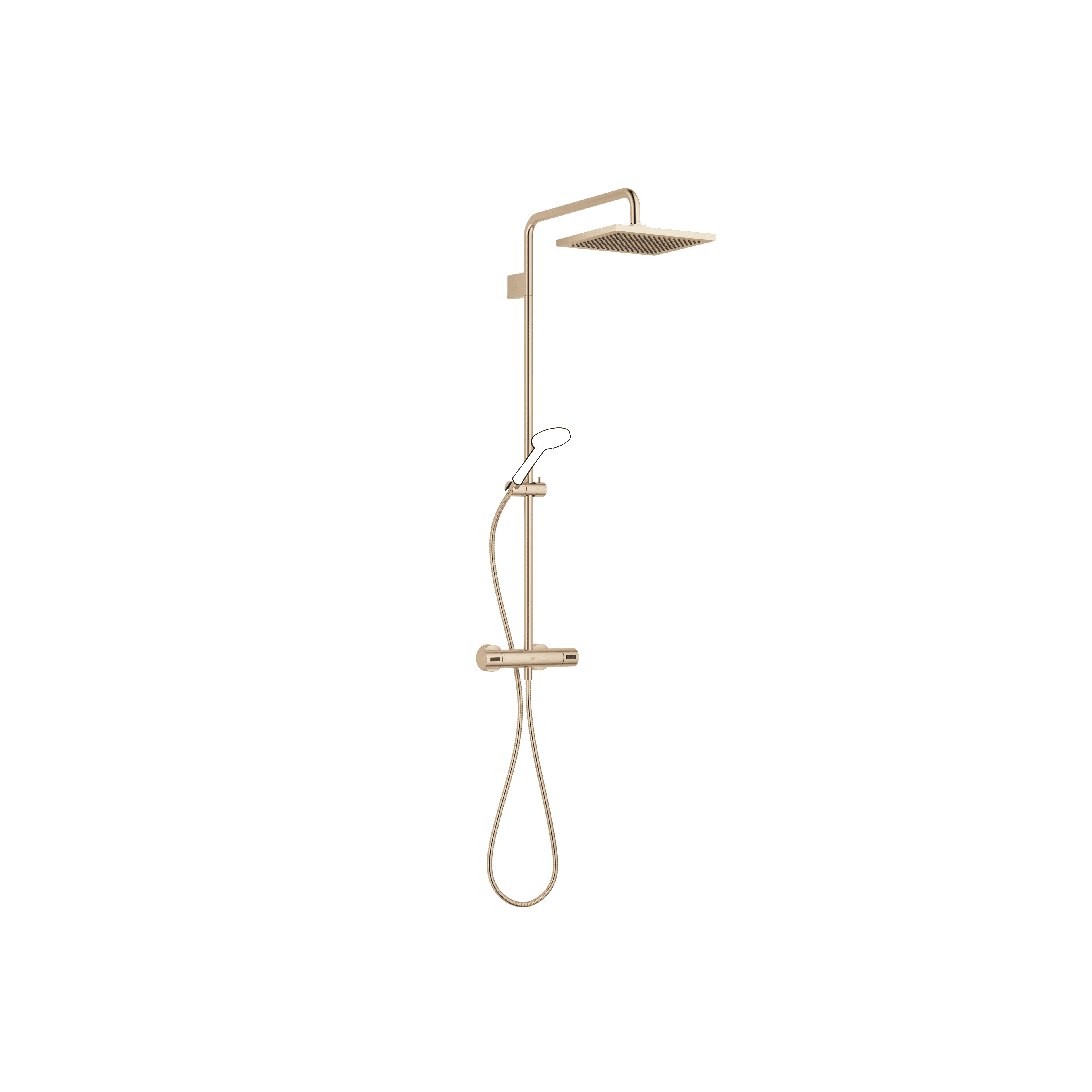

Showerpipe with shower thermostat without hand shower
Showers · Shower systems · Shower Pipes
Select finish
Brushed Champagne (22kt Gold)- Article number
- 34459980-46
- GTIN
- 4099477093741
- Mounting
- Shower systems
- Product type
- Shower Pipes
Availability, compatibility, and final specification are confirmed by Aquatop before ordering.
Model 34459980
Article numbers by finish
Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.
| Finish | Article number | GTIN | Product view |
|---|---|---|---|
| Chrome | 34459980-00 | 4029011893001 | View finish |
| Brushed Bronze (PVD) | 34459980-42 | 4099477289717 | View finish |
| Brushed Champagne (22kt Gold) | 34459980-46 | 4099477093741 | Selected |
| Brushed Chrome | 34459980-93 | 4029011947292 | View finish |
| Brushed Dark Brass (PVD) | 34459980-39 | 4099477401126 | View finish |
| Brushed Dark Platinum | 34459980-99 | 4029011920691 | View finish |
| Brushed Durabrass (23kt Gold) | 34459980-28 | 4029011920714 | View finish |
| Brushed Gold (PVD) | 34459980-37 | 4099477437644 | View finish |
| Brushed Light Gold (PVD) | 34459980-27 | 4099477209746 | View finish |
| Brushed Platinum | 34459980-06 | 4029011893018 | View finish |
| Champagne (22kt Gold) | 34459980-47 | 4099477093765 | View finish |
| Dark Chrome | 34459980-19 | 4099477074962 | View finish |
| Matte Black | 34459980-33 | 4029011920707 | View finish |
| Platinum | 34459980-08 | 4029011912689 | View finish |
Technical details
- # Rain shower:
- rain shower 300 x 240mm
- Rain shower material: metal
- overhead shower: rain flow
- max. rainshower flow 20 l/min
- Function from: 12 l/min
- quick clearing
- rain shower with anti-scale system
- # Hand shower:
- # Control element:
- rotary diverter with volume control and shut-off function
- slide-on rosettes Ø 70 mm
- metal shower hose 1750mm with integrated anti-twist protection
- slide bar
- # Technical data:
- shower with fixed riser projection 453mm
- height of fittings up to rain shower (bottom edge) 1009mm
- height of fittings up to top edge of elbow 1150mm
- Pipe diameter 23.5 mm
- gauge 150 mm - 13 mm
- 1/2" connection
- # Notes:
**This article does not include a hand shower!** **Intrinsic protection against back flow.**
Documents and package data
- Package height
- 160 mm
- Package width
- 895 mm
- Package depth
- 395 mm
- Gross weight
- 10.65 kg
Required accessories
28025979-000010 · 28017979-00 · 28027979-000010 · 28018979-00 · 28018979-000010 · 28016979-00 · 28016979-000010 · 28012979-00 · 28012979-000010 · 28029979-00 · 28029979-000010
