SERIES-VARIOUSModel 41773979

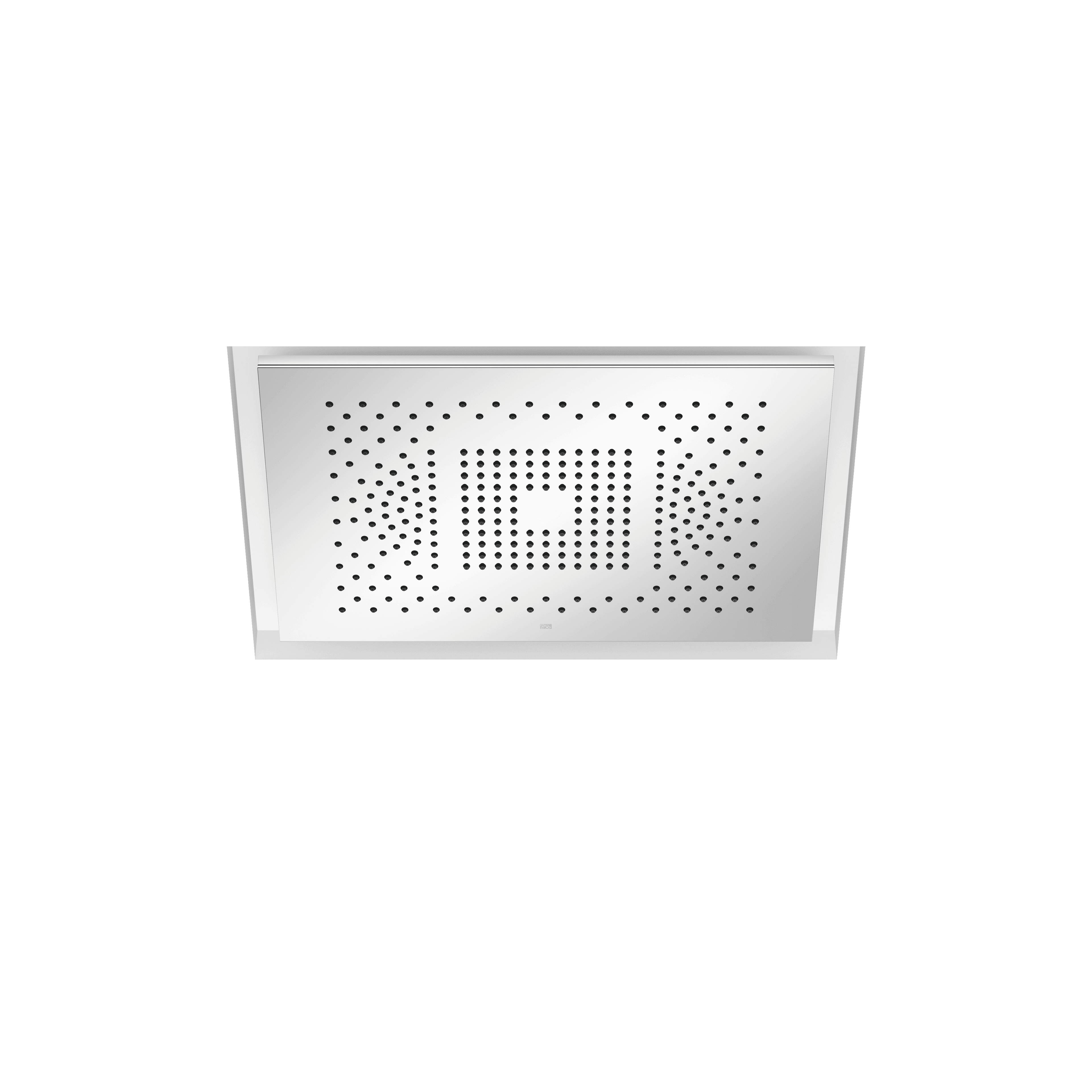

SERENITY SKY Rain panel for recessed ceiling installation with light FlowReduce

Showers · Spa Showers · Rain panels

Select finish

Chrome

Availability, compatibility, and final specification are confirmed by Aquatop before ordering.

Model 41773979

Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.

Finish	Article number	GTIN	Product view
Chrome	41773979-00	4099477274553	Selected
Brushed Bronze (PVD)	41773979-42	4099477274577	View finish
Brushed Champagne (22kt Gold)	41773979-46	4099477274584	View finish
Brushed Dark Platinum	41773979-99	4099477274614	View finish
Brushed Stainless Steel	41773979-86	4099477274607	View finish
Champagne (22kt Gold)	41773979-47	4099477274591	View finish
Dark Chrome	41773979-19	4099477274560	View finish

exposed trim parts
Rain panel with 2 different spray modes
PURIFY RAIN, 175 x 175 mm, max. flow rate 6.8 l/min (at 3 bar)
FULL RAIN, 455 x 315 mm, max. flow rate 6.8 l/min (at 3 bar)
Rain panel, 600 x 420 mm
min. recess depth 150 mm
weight 15kg
feed pipe (hot/cold): 2x DN 20
with anti-scale system
Recommended control element: xTool
Ceiling module power supply
24V DC (CV)
Ambient lighting
LED coloured light RGBW
Bulbs protected against splashing water
# Activation:
ZigBee Light Link RGBW controller
Provided by customer: Zigbee gateway
# Environment:
Not suitable for outdoor use.
Not suitable for use in a steam room.
Not suitable for use in chlorinated or salty environments.
# Planning tips:
Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7-701).
Dornbracht recommends consulting a systems integrator.
# Notes:

**includes light bulbs with a Class G energy efficiency**
