Official product media
Product reference
56714#299
Matte Black01 / 08
Gessi · Glass Connection

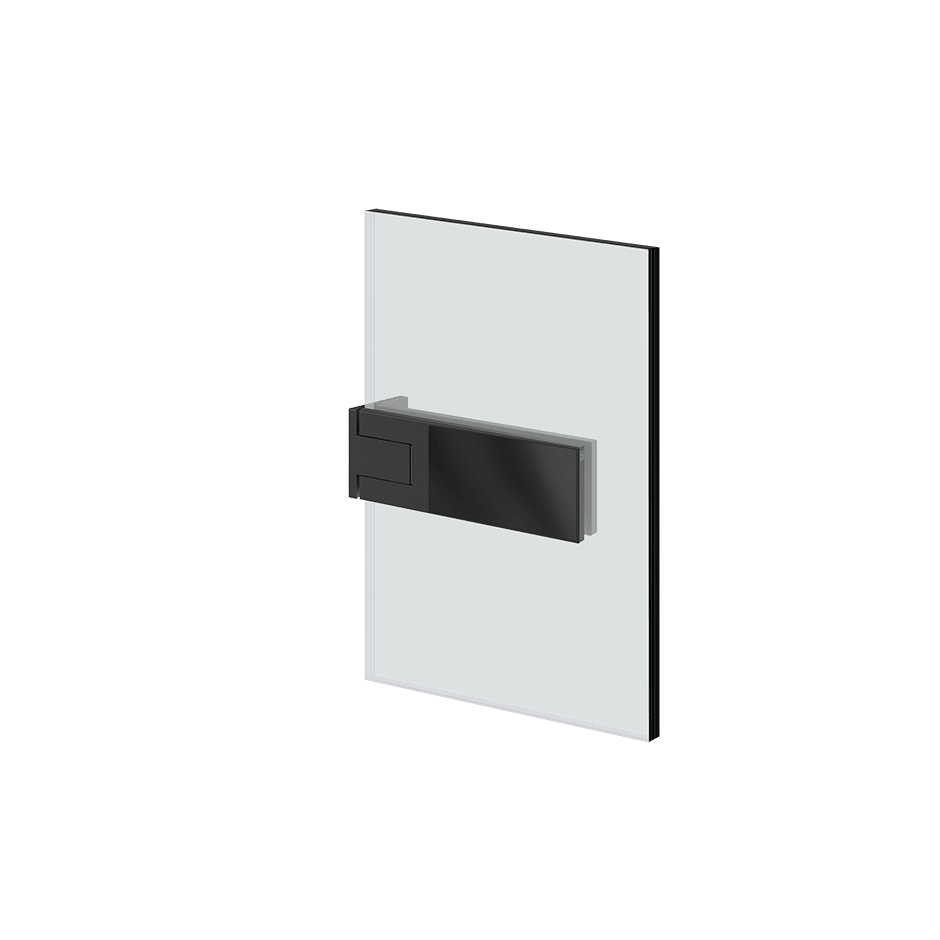

Gessi Hinges With Lift Function Product code 56714#299
Left Wall-Glass handle with lifting function at opening. 12 mm glass thickness. Maximum door weight 40 kg, maximum width 900 mm.
- Product type
- Bathroom Accessories
- Model
- 56714
- Dimensions
- Width: 160 mm | Height: 59 mm | Depth: 30 mm
- Material
- Warm Bronze Br. Pvd finish shown
Product reference
56714#72656714#03156714#76156714#29956714#14956714#72756714#84556714#79156714#72056714#70756714#71656714#708
GTIN 8055261732957 · Matte Black
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Egypt specification support
Specifying Hinges With Lift Function
Product selection, technical coordination, and local availability supported by Aquatop in Egypt.
Speak to the showroom teamAquatop supports the specification of Gessi Hinges With Lift Function, product reference 56714#299, for residential, hospitality, and commercial bathroom projects in Egypt. Confirm installation conditions, compatible components, the selected configuration, and local availability before ordering.
- Product reference
- 56714#299
- Brand
- Gessi
- Collection
- Glass Connection
- Installation
- Confirm mounting, connections and clearances in the official Gessi documents
Planning data
Fit and installation
- Dimensions
- Width: 160 mm | Height: 59 mm | Depth: 30 mm
- Material
- Warm Bronze Br. Pvd finish shown
- Installation
- Confirm mounting, connections and clearances in the official Gessi documents
- Reference
- 56714#299
Official Gessi resources
2D Model - DWGCAD fileTechnical Drawing mm - PDFTechnical drawingInstallation InstructionInstallation guideTechnical SheetTechnical sheet
View official Gessi product page Information is referenced from official Gessi material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Height: 59 mm
- Width: 160 mm
- Depth: 30 mm
- Maximum supported weight: 40 kg
- Hinge rotation angle: 90° outside/inside
- Automatic closing angle: 0 - 30°
- Zero door offset adjustment: +- 3°
- Maximum leaf width: 900 mm
Key features
Made in Italy
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
