Official product media
Product reference
3400322
Selected finishCX 8198-0.125-BN · Brushed Nickel · 0.125[0.5] · Battery with Hardwired Option
CX 8198-0.125-BN · Brushed Nickel · 0.125[0.5] · Battery with Hardwired Option01 / 12
CxModel CX 8198
Sloan CX 8198 Product code 3400322

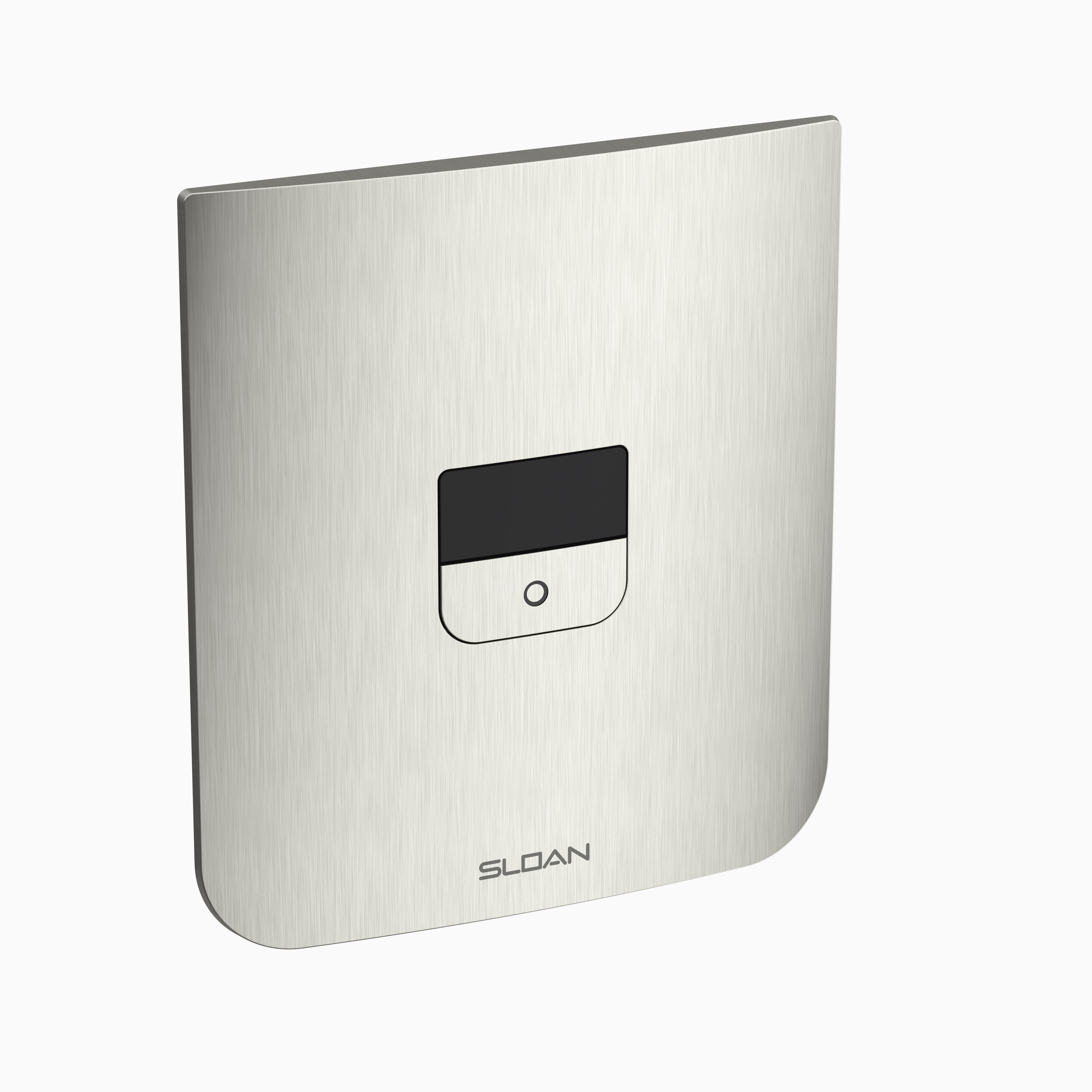

CX Concealed Sensor Urinal Flushometer
- Product type
- Flushometers
- Model
- CX 8198
- Dimensions
- See official Sloan specification sheet
- Installation
- Concealed
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Model CX 8198
Product references
Use the complete product code when requesting this Sloan model. Each configuration or finish may have its own reference and GTIN.
| Configuration | Product code | GTIN | Product view |
|---|---|---|---|
| CX 8198-0.125-GR · Graphite · 0.125[0.5] · Battery with Hardwired Option | 3400324 | 671254491335 | View reference |
| CX 8198-0.125-PB · Polished Brass · 0.125[0.5] · Battery with Hardwired Option | 3400323 | 671254491328 | View reference |
| CX 8198-0.125-BN · Brushed Nickel · 0.125[0.5] · Battery with Hardwired Option | 3400322 | 671254491311 | Selected |
| CX 8198-0.125-SF · Brushed Stainless · 0.125[0.5] · Battery with Hardwired Option | 3400321 | 671254491304 | View reference |
| CX 8198-0.125-CP · Polished Chrome · 0.125[0.5] · Battery with Hardwired Option | 3400320 | 671254491298 | View reference |
| CX 8198-0.25-GR · Graphite · 0.25[0.9] · Battery with Hardwired Option | 3400319 | 671254485358 | View reference |
| CX 8198-0.5-GR · Graphite · 0.5[1.9] · Battery with Hardwired Option | 3400318 | 671254485334 | View reference |
| CX 8198-0.25-PB · Polished Brass · 0.25[0.9] · Battery with Hardwired Option | 3400315 | 671254480520 | View reference |
| CX 8198-0.5-PB · Polished Brass · 0.5[1.9] · Battery with Hardwired Option | 3400314 | 671254480513 | View reference |
| CX 8198-0.25-BN · Brushed Nickel · 0.25[0.9] · Battery with Hardwired Option | 3400311 | 671254480483 | View reference |
| CX 8198-0.5-BN · Brushed Nickel · 0.5[1.9] · Battery with Hardwired Option | 3400310 | 671254480476 | View reference |
| CX 8198-0.25-SF · Brushed Stainless · 0.25[0.9] · Battery with Hardwired Option | 3400307 | 671254480469 | View reference |
| CX 8198-0.5-SF · Brushed Stainless · 0.5[1.9] · Battery with Hardwired Option | 3400306 | 671254478268 | View reference |
| CX 8198-0.25-CP · Polished Chrome · 0.25[0.9] · Battery with Hardwired Option | 3400303 | 671254476417 | View reference |
| CX 8198-0.5-CP · Polished Chrome · 0.5[1.9] · Battery with Hardwired Option | 3400302 | 671254476400 | View reference |
| CX 8198-0.5-CP-CN · Polished Chrome · 0.5[1.9] · Battery with Hardwired Option | 3400302T | 671254647176 | View reference |
| CX 8198-0.25-CP-CN · Polished Chrome · 0.25[0.9] · Battery with Hardwired Option | 3400303T | 671254647121 | View reference |
| CX 8198-0.125-CP-CN · Polished Chrome · 0.125[0.5] · Battery with Hardwired Option | 3400320T | 671254647077 | View reference |
| CX 8198-0.25-GR-CN · Graphite · 0.25[0.9] · Battery with Hardwired Option | 3400319T | 671254647169 | View reference |
| CX 8198-0.5-GR-CN · Graphite · 0.5[1.9] · Battery with Hardwired Option | 3400318T | 671254647213 | View reference |
| CX 8198-0.5-PB-CN · Polished Brass · 0.5[1.9] · Battery with Hardwired Option | 3400314T | 671254647206 | View reference |
| CX 8198-0.25-PB-CN · Polished Brass · 0.25[0.9] · Battery with Hardwired Option | 3400315T | 671254647152 | View reference |
| CX 8198-0.25-BN-CN · Brushed Nickel · 0.25[0.9] · Battery with Hardwired Option | 3400311T | 671254647145 | View reference |
| CX 8198-0.5-BN-CN · Brushed Nickel · 0.5[1.9] · Battery with Hardwired Option | 3400310T | 671254647190 | View reference |
| CX 8198-0.25-SF-CN · Brushed Stainless · 0.25[0.9] · Battery with Hardwired Option | 3400307T | 671254647138 | View reference |
| CX 8198-0.5-SF-CN · Brushed Stainless · 0.5[1.9] · Battery with Hardwired Option | 3400306T | 671254647183 | View reference |
| CX 8198-0.125-GR-CN · Graphite · 0.125[0.5] · Battery with Hardwired Option | 3400324T | 671254647114 | View reference |
| CX 8198-0.125-PB-CN · Polished Brass · 0.125[0.5] · Battery with Hardwired Option | 3400323T | 671254647107 | View reference |
| CX 8198-0.125-BN-CN · Brushed Nickel · 0.125[0.5] · Battery with Hardwired Option | 3400322T | 671254647091 | View reference |
| CX 8198-0.125-SF-CN · Brushed Stainless · 0.125[0.5] · Battery with Hardwired Option | 3400321T | 671254647084 | View reference |
| CX 8198-0.125-CP · Polished Chrome · 0.125[0.5] · Battery with Hardwired Option | 34003039 | 671254606951 | View reference |
| CX 8198-0.25-CP · Polished Chrome · 0.25[0.9] · Battery with Hardwired Option | 34003038 | 671254606944 | View reference |
| CX 8198-0.5-BB · Brushed Brass · 0.5[1.9] · Battery with Hardwired Option | 34003016 | 671254603608 | View reference |
| CX 8198-0.25-BB · Brushed Brass · 0.25[0.9] · Battery with Hardwired Option | 34003017 | 671254603622 | View reference |
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Concealed
- Installation
- Concealed
Official Sloan resources
CX 8198 BIM ModelBIM fileCX Flushometer BrochureBrochureFinishes BrochureBrochureCX 8158_8198 Installation InstructionsInstallation guideCXSensorMaintenance guideCX Concealed Sensor Flushometers HPDTransparency ReportsCX Sensor Flushometer EPDTransparency ReportsCX 8198 general specificationSpecification sheet3400324 product specificationSpecification sheet3400323 product specificationSpecification sheet3400322 product specificationSpecification sheet3400321 product specificationSpecification sheet3400320 product specificationSpecification sheet3400319 product specificationSpecification sheet3400318 product specificationSpecification sheet3400315 product specificationSpecification sheet3400314 product specificationSpecification sheet3400311 product specificationSpecification sheet3400310 product specificationSpecification sheet3400307 product specificationSpecification sheet3400306 product specificationSpecification sheet3400303 product specificationSpecification sheet3400302 product specificationSpecification sheet3400302T product specificationSpecification sheet3400303T product specificationSpecification sheet3400320T product specificationSpecification sheet3400319T product specificationSpecification sheet3400318T product specificationSpecification sheet3400314T product specificationSpecification sheet3400315T product specificationSpecification sheet3400311T product specificationSpecification sheet3400310T product specificationSpecification sheet3400307T product specificationSpecification sheet3400306T product specificationSpecification sheet3400324T product specificationSpecification sheet3400323T product specificationSpecification sheet3400322T product specificationSpecification sheet3400321T product specificationSpecification sheet34003039 product specificationSpecification sheet34003038 product specificationSpecification sheet34003016 product specificationSpecification sheet34003017 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Fixed volume piston with filtered O-ring bypass
- Front access wall plate requires no rear access plumbing chase
- Sensor activated, hands-free operation
- Battery operated with hardwired option
- Electronic override button
- Low Battery indicator light
- Vandal resistant wall plate
- Adjustable flush connection
Key features
SensorADA CompliantASSE 1001BAA CompliantBABAA CompliantEPDHPDIAPMOLEED Materials & Resources EPD CreditLEED Materials & Resources HPD CreditLEED Water Efficiency CreditSustainable
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
