Selected finishECOS RESS-C BT DF-1.6/1.1-GR · Graphite · 1.6/1.1 · Battery
ECOS RESS-C BT DF-1.6/1.1-GR · Graphite · 1.6/1.1 · Battery01 / 08
EcosModel ECOS RESS-C BT DF

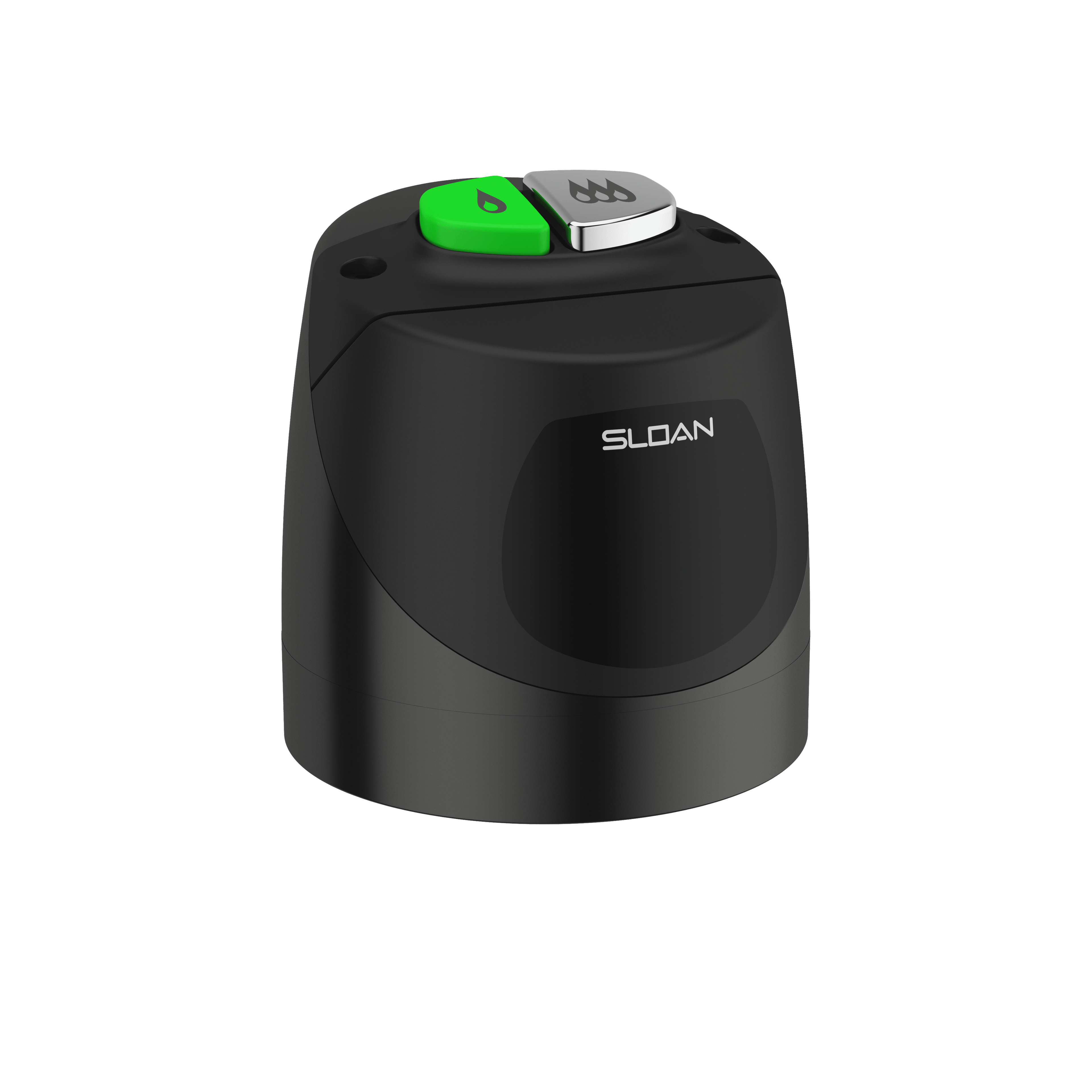

Sloan ECOS RESS-C BT DF Product code 33754022
Introducing the ECOS Exposed Sensor Water Closet Retrofit Flushometer, a cutting-edge solution for modern restroom facilities. This innovative ECOS RESS-C BT DF model combines advanced technology with water conservation features to deliver superior performance and efficiency. The wireless connectivity enables real-time diagnostics and adjustable settings, allowing facility managers to optimize performance through the user-friendly Sloan Connect App available for smartphones and tablets. The ECOS Flushometer incorporates a thoughtful design with a three-second flush delay and a "Low Battery" flashing LED indicator for easy maintenance. Its robust construction includes a sweat solder adapter with cover tube and a cast wall flange with set screw, ensuring durability and simplified installation. Powered by four AA batteries, this flushometer utilizes an infrared sensor with multiple-focused, lobular sensing fields for accurate high and low target detection. Water conservation is at the forefront of the ECOS design, featuring a fixed metering bypass and no external volume adjustment. The flex tube diaphragm, engineered for improved longevity, works in tandem with the PERMEX synthetic rubber diaphragm and dual filtered fixed bypass to reduce maintenance needs. For added convenience, the flushometer includes a Courtesy Flush override button, providing users with manual flush capability when needed.
- Product type
- Flushometers
- Model
- ECOS RESS-C BT DF
- Dimensions
- See official Sloan specification sheet
- Installation
- Exposed
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Model ECOS RESS-C BT DF
Product references
Use the complete product code when requesting this Sloan model. Each configuration or finish may have its own reference and GTIN.
| Configuration | Product code | GTIN | Product view |
|---|---|---|---|
| ECOS RESS-C BT DF-1.28/1.1-SF · Brushed Stainless · 1.28/1.1 · Battery | 33754029 | 671254545403 | View reference |
| ECOS RESS-C BT DF-1.28/1.1-PB · Polished Brass · 1.28/1.1 · Battery | 33754028 | 671254545359 | View reference |
| ECOS RESS-C BT DF-1.28/1.1-GR · Graphite · 1.28/1.1 · Battery | 33754027 | 671254547858 | View reference |
| ECOS RESS-C BT DF-1.28/1.1-BN · Brushed Nickel · 1.28/1.1 · Battery | 33754026 | 671254545304 | View reference |
| ECOS RESS-C BT DF-1.28/1.1-CP · Polished Chrome · 1.28/1.1 · Battery | 33754025 | 671254545250 | View reference |
| ECOS RESS-C BT DF-1.6/1.1-SF · Brushed Stainless · 1.6/1.1 · Battery | 33754024 | 671254545205 | View reference |
| ECOS RESS-C BT DF-1.6/1.1-PB · Polished Brass · 1.6/1.1 · Battery | 33754023 | 671254545151 | View reference |
| ECOS RESS-C BT DF-1.6/1.1-GR · Graphite · 1.6/1.1 · Battery | 33754022 | 671254547902 | Selected |
| ECOS RESS-C BT DF-1.6/1.1-BN · Brushed Nickel · 1.6/1.1 · Battery | 33754021 | 671254545106 | View reference |
| ECOS RESS-C BT DF-1.6/1.1-CP · Polished Chrome · 1.6/1.1 · Battery | 33754019 | 671254545052 | View reference |
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Exposed
- Installation
- Exposed
Official Sloan resources
Retrofits BrochureBrochureSloan ECOS Single_Dual-Flush Flushometer & Retrofit Valve Installation InstructionsInstallation guideFlushometer Parts Maintenance ScheduleMaintenance guideControl Stop Repair and Maintenance GuideMaintenance guideFlush Connections Flanges Repair and Maintenance GuideMaintenance guideTail Piece Repair and Maintenance GuideMaintenance guideECOS RESS-C BT DF general specificationSpecification sheet33754029 product specificationSpecification sheet33754028 product specificationSpecification sheet33754027 product specificationSpecification sheet33754026 product specificationSpecification sheet33754025 product specificationSpecification sheet33754024 product specificationSpecification sheet33754023 product specificationSpecification sheet33754022 product specificationSpecification sheet33754021 product specificationSpecification sheet33754019 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Wireless connected device for real time diagnostic and adjustable product settings
- Sloan Connect App readily available for smart phone and tablet devices
- User friendly three (3) second Flush Delay
- “Low Battery” Flashing LED
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Four (4) Size AA Battery Power Source
- Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Flex Tube Diaphragm designed for improved life and reduced maintenance
- Engineered Metal Cover with replaceable Lens Window
- PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Key features
BluetoothSensorADA CompliantBAA CompliantBABAA CompliantIAPMOLEED Water Efficiency CreditSatisfies LEED Credits
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
