Sloan XleratorModel EHD-502-ECO
Sloan EHD-502-ECO Product code 3366112

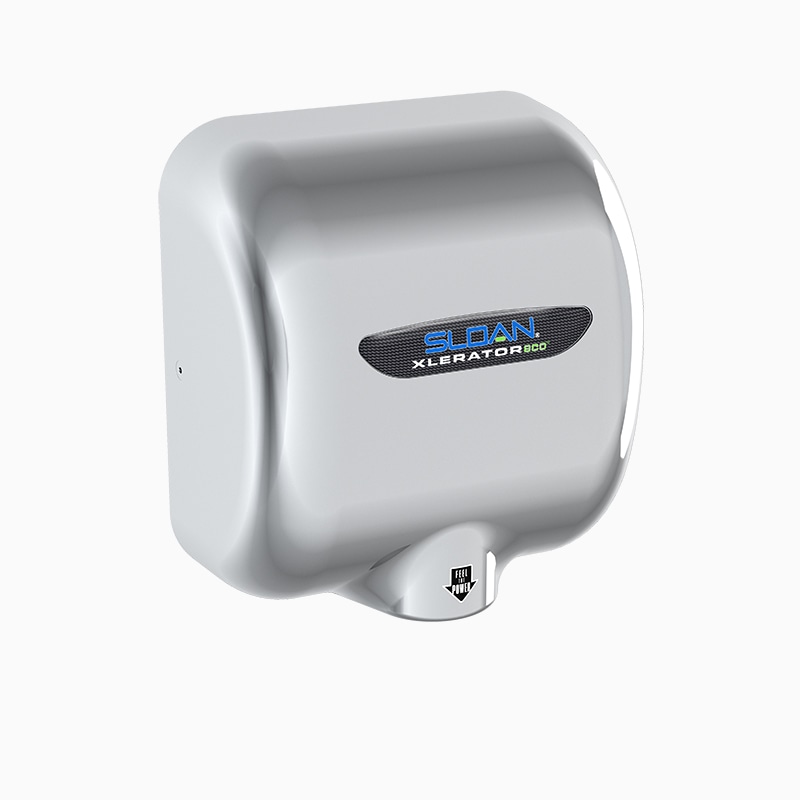

Sloan XLERATOR Sensor-Operated Wall-Mounted Hand Dryer
- Product type
- Hand Dryers
- Model
- EHD-502-ECO
- Dimensions
- Width: 298 mm · Height: 170 mm · Depth: 322 mm
- Installation
- Wall-Mounted
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Model EHD-502-ECO
Product references
Use the complete product code when requesting this Sloan model. Each configuration or finish may have its own reference and GTIN.
| Configuration | Product code | GTIN | Product view |
|---|---|---|---|
| EHD-502-ECO-PW · Polished White | 3366118 | 671254475823 | View reference |
| EHD-502-ECO-PW-HEPA · Polished White | 3366117 | 671254475816 | View reference |
| EHD-502-ECO-BN · Brushed Nickel | 3366116 | 671254475809 | View reference |
| EHD-502-ECO-BN-HEPA · Brushed Nickel | 3366115 | 671254475793 | View reference |
| EHD-502-ECO-GR · Graphite | 3366114 | 671254475786 | View reference |
| EHD-502-ECO-GR-HEPA · Graphite | 3366113 | 671254475779 | View reference |
| EHD-502-ECO-CP-HEPA · Polished Chrome | 3366112 | 671254475717 | Selected |
| EHD-502-ECO-CP · Polished Chrome | 3366111 | 671254475700 | View reference |
| EHD-502-ECO-MW-HEPA · Matte White | 3366110 | 671254475694 | View reference |
| EHD-502-ECO-MW · Matte White | 3366109 | 671254475687 | View reference |
Planning data
Details and installation
- Dimensions
- Width: 298 mm · Height: 170 mm · Depth: 322 mm
- Installation
- Wall-Mounted
- Installation
- Wall-Mounted
Official Sloan resources
EHD-501_501-ECO_502_502 ECO BIMBIM fileSloan Hand Dryers BrochureBrochureFinishes BrochureBrochureCCF002.12_SURFACE_MOUNT_BW_XLERATORCAD DrawingSloan XLERATOR and Sloan XLERATOR Eco Hand Dryer InstructionsInstallation guideXLERATOR Eco Hand Dryers EPDTransparency Reports3366118 product specificationSpecification sheet3366117 product specificationSpecification sheet3366116 product specificationSpecification sheet3366115 product specificationSpecification sheet3366114 product specificationSpecification sheet3366113 product specificationSpecification sheet3366112 product specificationSpecification sheet3366111 product specificationSpecification sheet3366110 product specificationSpecification sheet3366109 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast
- Residual moisture is evaporated with a warm stream of air up to 135°F/57°C
- One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments
- 95% cost savings vs. paper towels
- Can be easily positioned to comply with ADA requirements or for juvenile height
- Hygienic hand dryer solution, 10 second dry time
- Available with Recess Kit for ADA compliance
- Can install multiple units on one circuit
- Virtually maintenance free
- Available in Polished White, Matte White, Polished Chrome, Brushed Nickel and Graphite
Key features
TrueSensorBAA CompliantEPDSustainableUL Certified, US and CanadaWELL Building Standard
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
