Sloan XleratorModel EHD-502

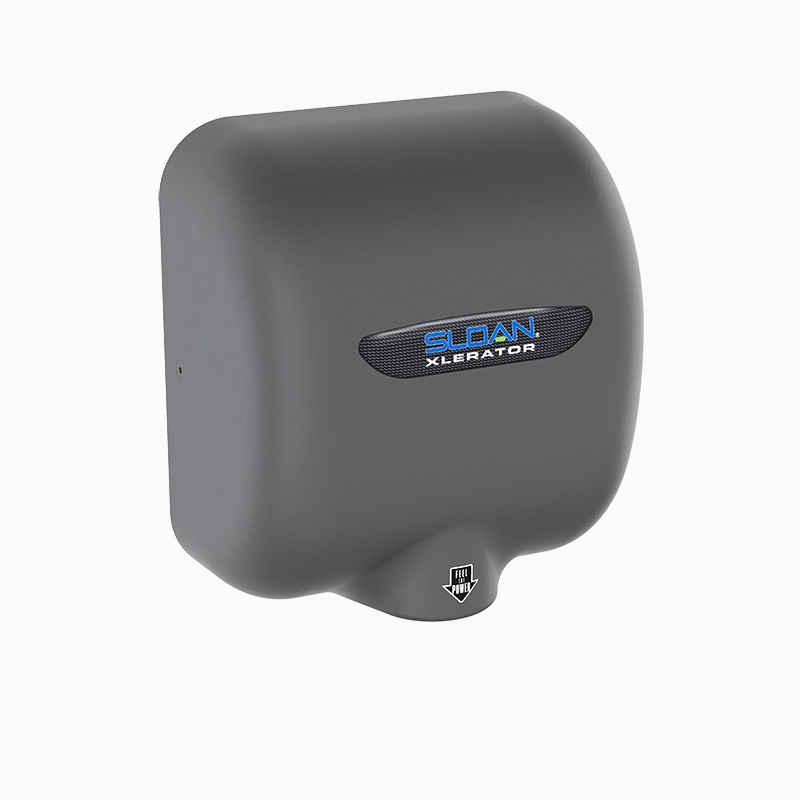

Sloan EHD-502 Product code 3366124
Sloan XLERATOR Sensor-Operated Wall-Mounted Hand Dryer
- Product type
- Hand Dryers
- Model
- EHD-502
- Dimensions
- Width: 298 mm · Height: 170 mm · Depth: 322 mm
- Installation
- Wall-Mounted
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Model EHD-502
Product references
Use the complete product code when requesting this Sloan model. Each configuration or finish may have its own reference and GTIN.
| Configuration | Product code | GTIN | Product view |
|---|---|---|---|
| EHD-502-PW-HEPA · Polished White | 3366127 | 671254475915 | View reference |
| EHD-502-BN-HEPA · Brushed Nickel | 3366126 | 671254475908 | View reference |
| EHD-502-GR-HEPA · Graphite | 3366125 | 671254475892 | View reference |
| EHD-502-GR · Graphite | 3366124 | 671254475885 | Selected |
| EHD-502-MW-HEPA · Matte White | 3366076 | 671254434097 | View reference |
| EHD-502-CP-HEPA · Polished Chrome | 3366053 | 671254266445 | View reference |
Planning data
Details and installation
- Dimensions
- Width: 298 mm · Height: 170 mm · Depth: 322 mm
- Installation
- Wall-Mounted
- Installation
- Wall-Mounted
Official Sloan resources
EHD-501_501-ECO_502_502 ECO BIMBIM fileSloan Hand Dryers BrochureBrochureFinishes BrochureBrochureCCF002.12_SURFACE_MOUNT_BW_XLERATORCAD DrawingSloan XLERATOR and Sloan XLERATOR Eco Hand Dryer InstructionsInstallation guideXLERATOR Hand Dryers EPDTransparency ReportsXLERATOR Hand Dryers HPDTransparency Reports3366127 product specificationSpecification sheet3366126 product specificationSpecification sheet3366125 product specificationSpecification sheet3366124 product specificationSpecification sheet3366076 product specificationSpecification sheet3366053 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Automatically operates by means of an Infrared Optical Sensor with 35-second lockout feature, it activates a strong controlled air blast
- Residual moisture is evaporated with a warm stream of air up to 135°F/57°C
- One-piece heavy-duty rib reinforced die cast zinc alloy housing minimizes damage to dryer in abusive environments
- 95% cost savings vs. paper towels
- Can be easily positioned to comply with ADA requirements or for juvenile height
- Series commutated, through-flow discharge, vacuum type motor/blower combination
- Air velocity of 16,000 LFM (linear feet per minute) at an outlet temperature of 135°F/57°C at a 72°F/22°C ambient room temperature
- Heating element constructed of Nichrome wire and protected by an automatic resetting thermostat
- One piece heavy-duty rib reinforced die cast zinc alloy housing
- Bright chrome plate or chip-proof electrostatically-applied epoxy finish, available in Polished White, Matte White, Polished Chrome, Brushed Nickel and Graphite
- Tamper-proof cover fasteners are included, Virtually maintenance free
- Decibel Rating of 78-80 dB
- 8 second dry time, Hygienic hand dryer solution
- Adjustable speed, sound and heat control
- Available with Recess Kit for ADA compliance
Key features
TrueSensorBAA CompliantEPDSustainableWELL Building StandardUL Certified, US and Canada
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
