Official product media
Product reference
33461082
Selected finishESD-1100-SF · Brushed Stainless
ESD-1100-SF · Brushed Stainless01 / 06
SloanModel ESD-1100

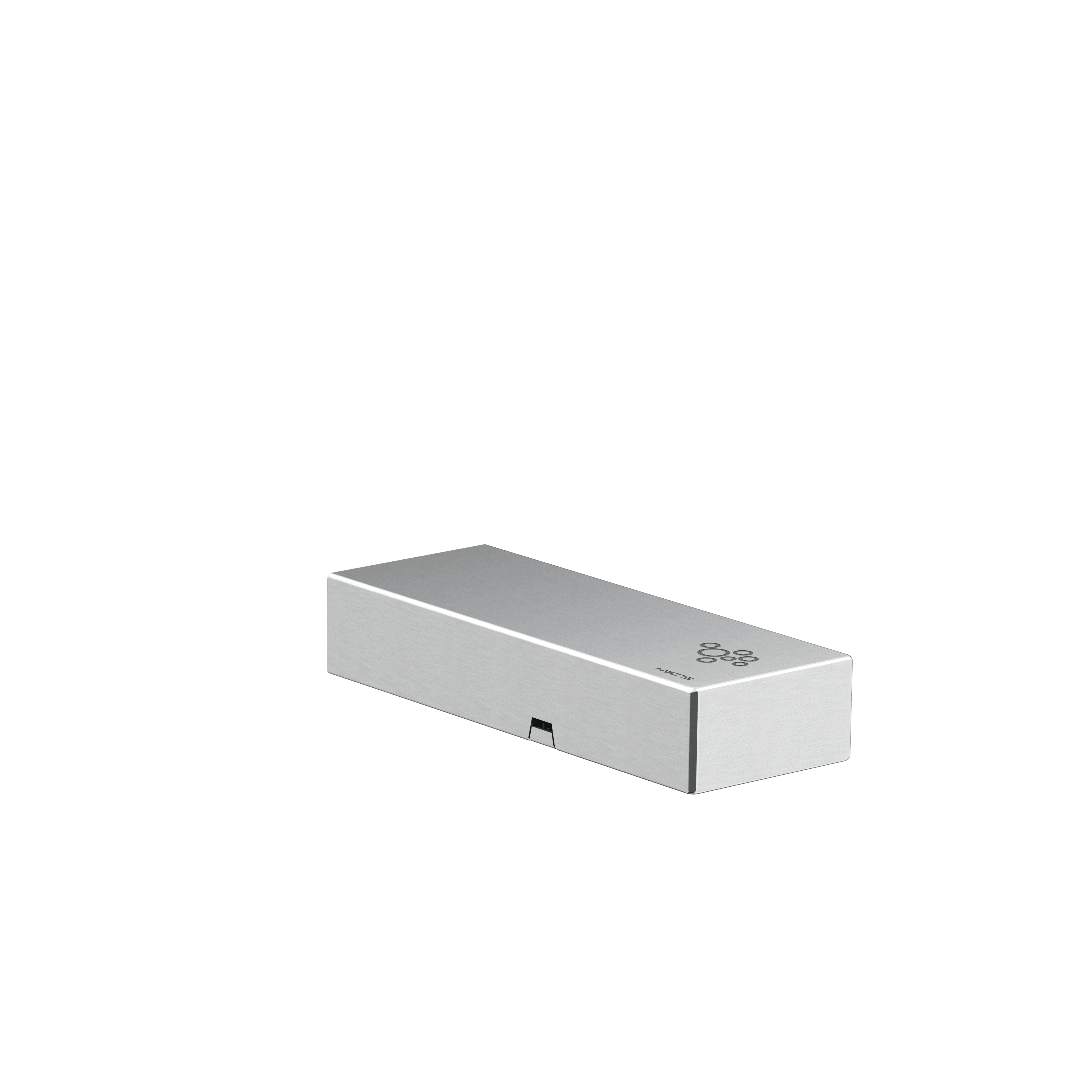

Sloan ESD-1100 Product code 33461082
Sloan Basin-Mounted Top-fill Soap Dispenser
- Product type
- Soap Dispensers
- Model
- ESD-1100
- Dimensions
- Width: 57 mm · Height: 29 mm · Depth: 152 mm
- Installation
- Basin-Mounted
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Model ESD-1100
Product references
Use the complete product code when requesting this Sloan model. Each configuration or finish may have its own reference and GTIN.
| Configuration | Product code | GTIN | Product view |
|---|---|---|---|
| ESD-1100-PB · Polished Brass | 33461083 | 671254632851 | View reference |
| ESD-1100-SF · Brushed Stainless | 33461082 | 671254632844 | Selected |
| ESD-1100-GR · Graphite | 33461081 | 671254632837 | View reference |
| ESD-1100-BN · Brushed Nickel | 33461079 | 671254632820 | View reference |
| ESD-1100-CP · Polished Chrome | 33461078 | 671254632813 | View reference |
| ESD-1100-BB · Brushed Brass | 33461084 | 671254632868 | View reference |
Planning data
Details and installation
- Dimensions
- Width: 57 mm · Height: 29 mm · Depth: 152 mm
- Installation
- Basin-Mounted
- Installation
- Basin-Mounted
Official Sloan resources
FLITE-DEC BrochureBrochureFinishes BrochureBrochureESD-1100 Installation InstructionsInstallation guideESD-1100 Repair and Maintenance GuideMaintenance guide33461083 product specificationSpecification sheet33461082 product specificationSpecification sheet33461081 product specificationSpecification sheet33461079 product specificationSpecification sheet33461078 product specificationSpecification sheet33461084 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Mounts to basin wall
- 2.85 Gallon Reservoir, Top-fill closed soap system
- Can withstand up to 150 lbs of downward force applied to front of spout
- Top-fill refill quick connect
- Soap Reservoir supplies one soap dispenser
- Low Soap Level Indicator
- All electronics sealed
- Double infrared sensors with automatic setting feature
- Foaming Soap Refill (not included)
- Available only with the FLITE-DEC Integrated Sink System
Key features
WELL Building Standard
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
