Product reference
3346166
Selected finishESD-420-CP · Polished Chrome
ESD-420-CP · Polished Chrome01 / 13
SloanModel ESD-420

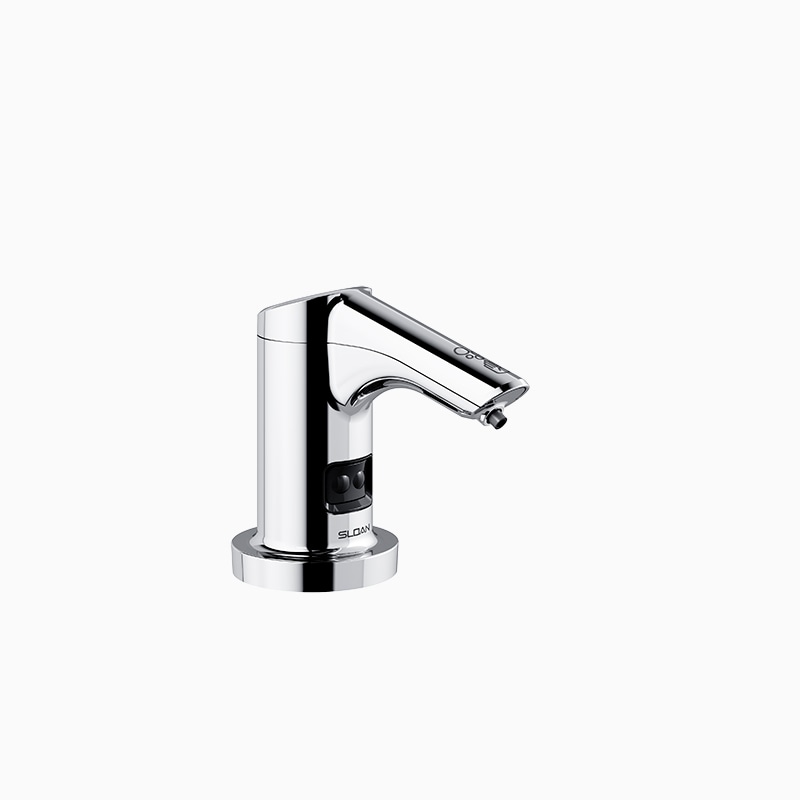

Sloan ESD-420 Product code 3346166
The ESD-420 is a sensor activated Sloan foam soap dispenser. The ESD-420 is a modular one-piece construction that easily attaches to the deck surface. The deck should have a maximum thickness of two inches when installing the ESD-420. With all Sloan soap dispensers, all electronics within the spout are sealed, and each spout is designed for drip free foam dispensing operation. The ESD-420 comes with all the necessary hardware required to have your soap dispenser installed and active. The motor assembly of the ESD-420 is suspended under the counter and connects to the soap dispenser spout, additionally the motor assembly rotates 360 degrees for easy installation and simplified maintenance. The battery life of this soap dispenser is 45,000 activations, and each soap bottle has 1,500 dispenses. The ESD-420 will ship with 2 bottles of non-scented, non-colored foam soap. To purchase soap refills, you can purchase the Sloan ESD-325. If you are interested in a matching faucet, Sloan recommends EBF-425 or ETF-420 style faucets.
- Product type
- Soap Dispensers
- Model
- ESD-420
- Dimensions
- Width: 72 mm · Height: 123 mm · Depth: 151 mm
- Installation
- Deck-Mounted
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Model ESD-420
Product references
Use the complete product code when requesting this Sloan model. Each configuration or finish may have its own reference and GTIN.
| Configuration | Product code | GTIN | Product view |
|---|---|---|---|
| ESD-420-SF · Brushed Stainless | 3346170 | 671254503656 | View reference |
| ESD-420-BN · Brushed Nickel | 3346169 | 671254503663 | View reference |
| ESD-420-PB · Polished Brass | 3346168 | 671254503632 | View reference |
| ESD-420-GR · Graphite | 3346167 | 671254503625 | View reference |
| ESD-420-CP · Polished Chrome | 3346166 | 671254503618 | Selected |
| ESD-420-BB · Brushed Brass | 33461052 | 671254590441 | View reference |
Planning data
Details and installation
- Dimensions
- Width: 72 mm · Height: 123 mm · Depth: 151 mm
- Installation
- Deck-Mounted
- Installation
- Deck-Mounted
Official Sloan resources
ESD-420 BIMBIM fileFaucet and Soap Dispenser BrochureBrochureFinishes BrochureBrochureESD-420 CADCAD DrawingESD Series Installation InstructionsInstallation guideESD-500-600-700-800-1500-2000-2100 Repair and Maintenance GuideMaintenance guideSoap Dispenser Sell SheetSell SheetESD-325 and ESD-322 ESD GOJO Foam Hand Cleaner SDS SheetSDS Safety Data Sheet3346170 product specificationSpecification sheet3346169 product specificationSpecification sheet3346168 product specificationSpecification sheet3346167 product specificationSpecification sheet3346166 product specificationSpecification sheet33461052 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Touch-free operation improves hand washing hygiene
- Modular one-piece construction easily attaches to deck surface
- All electronics in spout are sealed
- Designed for drip free foam dispensing operation
- Motor assembly will be suspended the under sink deck and connected to the soap dispenser spout
- Motor assembly rotates 360 degrees for easy installation
- Battery life of 45,000 activations. 1-2 years based on usage.
- Approx. 1,500 dispenses per foam soap bottle
- Ships with 2 bottles of ESD-325 non-scented, non-colored foam soap (1500ml per bottle)
- Ships with battery pack (4 "D" Alkaline batteries included)
- Sensor range – nominal 5”
- All mounting hardware included
- Optional ESD-324 AC adaptor can be purchased separately (part number 0346090) for hardwired applications and includes splitter cable to enable powering 2 soap dispensers. If using AC adaptor, GFI outlet 120V/15 Amp suggested per code
- Additional foam soap can be purchased through Sloan (ESD-325) or GOJO distribution (8565-04-N6300GN)
- Select the ESD-421 to combine ESD-420 soap dispenser, 2 bottles of soap and the EBF-425 faucet
- Note: Must used approved soap refills. Refills cannot be refilled after use. They must be recycled and a new bottle inserted into the dispenser. If they are refilled with a different soap the warranty on the soap dispenser will become null and void.
Key features
ADA CompliantWELL Building Standard
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
