Product reference
32503007
Selected finishG2 8186 BT-BN · Brushed Nickel · Battery
G2 8186 BT-BN · Brushed Nickel · Battery01 / 09
G2Model G2 8186 BT

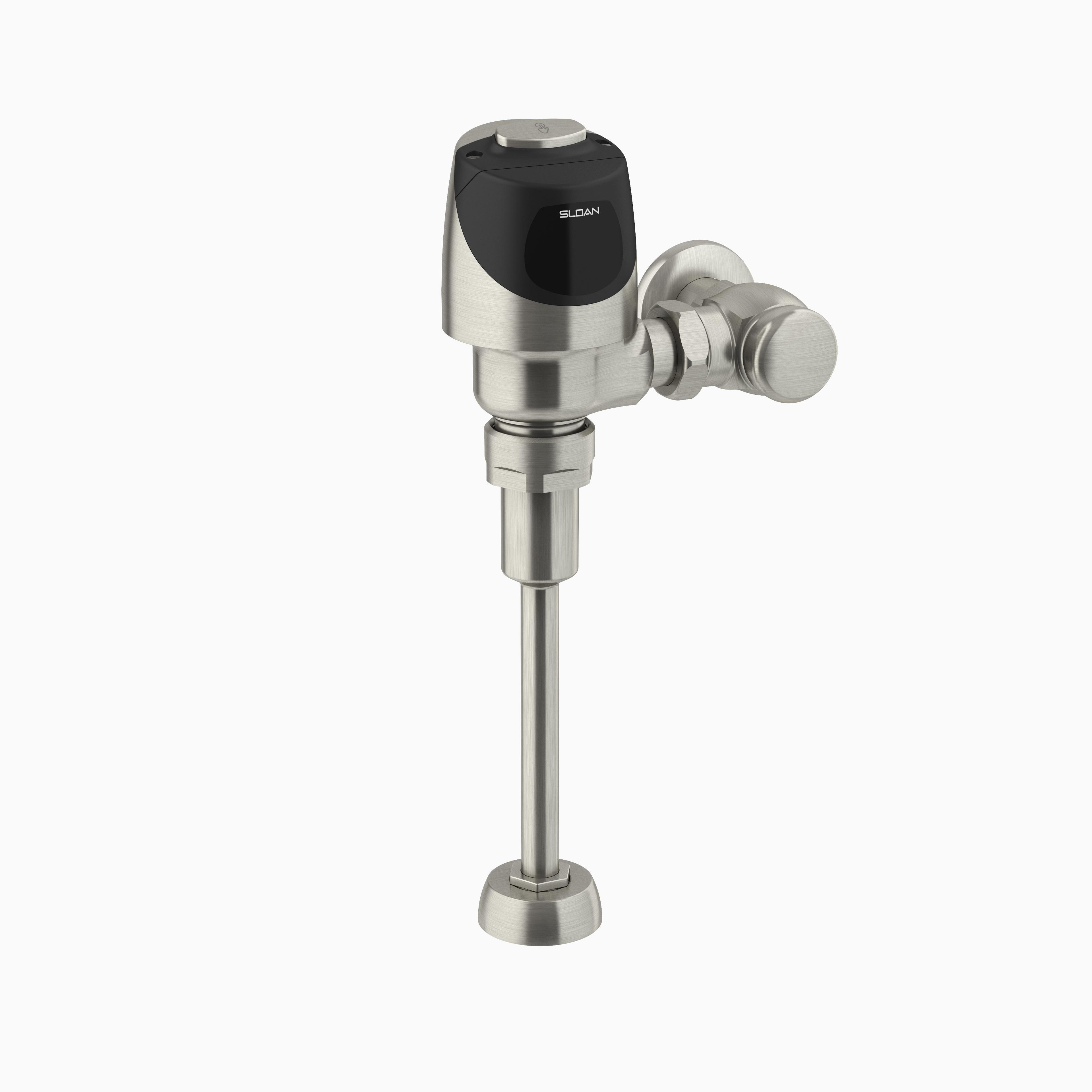

Sloan G2 8186 BT Product code 32503007
G2 Exposed Sensor Urinal Flushometer
- Product type
- Flushometers
- Model
- G2 8186 BT
- Dimensions
- See official Sloan specification sheet
- Installation
- Exposed
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Model G2 8186 BT
Product references
Use the complete product code when requesting this Sloan model. Each configuration or finish may have its own reference and GTIN.
| Configuration | Product code | GTIN | Product view |
|---|---|---|---|
| G2 8186 BT-0.5-GR · Graphite · 0.5[1.9] · Battery | 32503016 | 671254548596 | View reference |
| G2 8186 BT-0.5-SF · Brushed Stainless · 0.5[1.9] · Battery | 32503015 | 671254548541 | View reference |
| G2 8186 BT-0.5-BN · Brushed Nickel · 0.5[1.9] · Battery | 32503013 | 671254548442 | View reference |
| G2 8186 BT-0.5-PB · Polished Brass · 0.5[1.9] · Battery | 32503014 | 671254548497 | View reference |
| G2 8186 BT-0.5-CP · Polished Chrome · 0.5[1.9] · Battery | 32503012 | 671254548398 | View reference |
| G2 8186 BT-GR · Graphite · Battery | 32503011 | 671254548343 | View reference |
| G2 8186 BT-SF · Brushed Stainless · Battery | 32503009 | 671254548299 | View reference |
| G2 8186 BT-PB · Polished Brass · Battery | 32503008 | 671254548244 | View reference |
| G2 8186 BT-BN · Brushed Nickel · Battery | 32503007 | 671254548190 | Selected |
| G2 8186 BT-CP · Polished Chrome · Battery | 32503006 | 671254548145 | View reference |
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Exposed
- Installation
- Exposed
Official Sloan resources
G2 Optima Plus 8186 BIM ModelBIM fileFinishes BrochureBrochureG2 8186 Elevation View CAD DrawingCAD DrawingG2 8186 Front View CAD DrawingCAD DrawingG2 and ECOS Single Flush Optima Plus Valve Installation Instructions duplicateInstallation guideFlushometer Parts Maintenance ScheduleMaintenance guideG2 Repair and Maintenance GuideMaintenance guideSensor Flushometers HPDTransparency ReportsG2 8186 BT general specificationSpecification sheet32503016 product specificationSpecification sheet32503015 product specificationSpecification sheet32503013 product specificationSpecification sheet32503014 product specificationSpecification sheet32503012 product specificationSpecification sheet32503011 product specificationSpecification sheet32503009 product specificationSpecification sheet32503008 product specificationSpecification sheet32503007 product specificationSpecification sheet32503006 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Wireless connected device for real time diagnostic and adjustable product settings
- Sloan Connect App readily available for smart phone and tablet devices
- “Low Battery” Flashing LED
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Four (4) Size AA Battery Power Source
- Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Flex Tube Diaphragm designed for improved life and reduced maintenance
- Engineered Metal Cover with replaceable Lens Window
- PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- High copper, low zinc brass castings for dezincification resistance
- Valve body, Cover, Tailpiece and Control Stop shall be in compliance with ASTM Alloy Classification for Semi-Red Brass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Key features
SensorADA CompliantBAA CompliantBABAA CompliantcUPC CertifiedIAPMOLEED Water Efficiency CreditSatisfies LEED Credits
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
