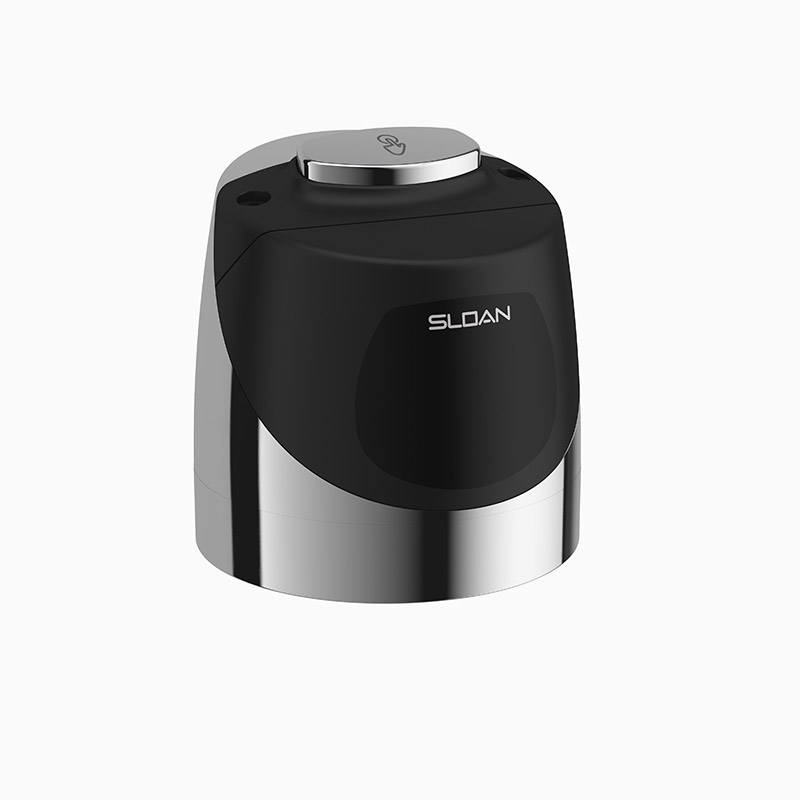

G2Model G2 RESS-C BT
Sloan G2 RESS-C BT Product code 33250083
Introducing the G2 Exposed Sensor Water Closet Flushometer, featuring the innovative G2 RESS-C BT model. This cutting-edge flushometer combines advanced technology with user-friendly features to deliver exceptional performance and water conservation. The wireless connectivity allows for real-time diagnostics and adjustable settings, making maintenance and customization effortless. With the Sloan Connect App, facility managers can easily monitor and control the flushometer from their smartphones or tablets. The G2 RESS-C BT boasts a user-friendly three-second flush delay and a low battery indicator, ensuring optimal functionality and timely maintenance. Its durable construction includes a sweat solder adapter with a cover tube and a cast wall flange with a set screw, providing secure installation and long-lasting performance. The flushometer operates using an advanced infrared sensor with multiple-focused, lobular sensing fields for accurate high and low target detection. Water conservation is at the forefront of the G2 RESS-C BT design, featuring a fixed metering bypass and no external volume adjustment. The flex tube diaphragm is engineered for improved longevity and reduced maintenance needs, while the PERMEX synthetic rubber diaphragm with dual filtered fixed bypass ensures reliable operation. For added convenience, the flushometer includes a Courtesy Flush override button, allowing manual activation when necessary.
- Product type
- Flushometers
- Model
- G2 RESS-C BT
- Dimensions
- See official Sloan specification sheet
- Installation
- Exposed
Local availability, compatible components and final installation requirements are confirmed by Aquatop before ordering.
Model G2 RESS-C BT
Product references
Use the complete product code when requesting this Sloan model. Each configuration or finish may have its own reference and GTIN.
| Configuration | Product code | GTIN | Product view |
|---|---|---|---|
| G2 RESS-C BT-1.6-GR · Graphite · 1.6[6.0] · Battery | 33250096 | 671254549944 | View reference |
| G2 RESS-C BT-1.28-GR · Graphite · 1.28[4.8] · Battery | 33250095 | 671254549999 | View reference |
| G2 RESS-C BT-1.28-SF · Brushed Stainless · 1.28[4.8] · Battery | 33250091 | 671254549395 | View reference |
| G2 RESS-C BT-1.28-PB · Polished Brass · 1.28[4.8] · Battery | 33250089 | 671254549340 | View reference |
| G2 RESS-C BT-1.28-BN · Brushed Nickel · 1.28[4.8] · Battery | 33250088 | 671254549296 | View reference |
| G2 RESS-C BT-1.28-CP · Polished Chrome · 1.28[4.8] · Battery | 33250087 | 671254549241 | View reference |
| G2 RESS-C BT-1.6-SF · Brushed Stainless · 1.6[6.0] · Battery | 33250086 | 671254548794 | View reference |
| G2 RESS-C BT-1.6-PB · Polished Brass · 1.6[6.0] · Battery | 33250085 | 671254548749 | View reference |
| G2 RESS-C BT-1.6-BN · Brushed Nickel · 1.6[6.0] · Battery | 33250084 | 671254548695 | View reference |
| G2 RESS-C BT-1.6-CP · Polished Chrome · 1.6[6.0] · Battery | 33250083 | 671254548640 | Selected |
Planning data
Details and installation
- Dimensions
- See official Sloan specification sheet
- Installation
- Exposed
- Installation
- Exposed
Official Sloan resources
Retrofits BrochureBrochureG2 Ress C Plan View CAD DrawingCAD DrawingG2 Ress C Elevation View CAD DrawingCAD DrawingG2 and ECOS Single Flush Optima Plus Valve Installation Instructions duplicateInstallation guideFlushometer Parts Maintenance ScheduleMaintenance guideControl Stop Repair and Maintenance GuideMaintenance guideFlush Connections Flanges Repair and Maintenance GuideMaintenance guideTail Piece Repair and Maintenance GuideMaintenance guideG2 RESS-C BT general specificationSpecification sheet33250096 product specificationSpecification sheet33250095 product specificationSpecification sheet33250091 product specificationSpecification sheet33250089 product specificationSpecification sheet33250088 product specificationSpecification sheet33250087 product specificationSpecification sheet33250086 product specificationSpecification sheet33250085 product specificationSpecification sheet33250084 product specificationSpecification sheet33250083 product specificationSpecification sheet
View official Sloan product page Information is referenced from official Sloan material. Product availability and specifications may vary by market; use the latest approved local technical document for final coordination.
Features and design
- Wireless connected device for real time diagnostic and adjustable product settings
- Sloan Connect App readily available for smart phone and tablet devices
- User friendly three (3) second Flush Delay
- “Low Battery” Flashing LED
- Sweat solder adapter with cover tube and cast wall flange with set screw
- Four (4) Size AA Battery Power Source
- Operates by means of an infrared sensor with multiple-focused, lobular sensing fields for high and low target detection
- Fixed Metering Bypass and No External Volume Adjustment to Ensure Water Conservation
- Flex Tube Diaphragm designed for improved life and reduced maintenance
- Engineered Metal Cover with replaceable Lens Window
- PERMEX Synthetic Rubber Diaphragm with Dual Filtered Fixed Bypass
- Valve shall be in compliance to the applicable sections of ASSE 1037
Key features
SensorADA CompliantBAA CompliantBABAA CompliantLEED Water Efficiency CreditSatisfies LEED Credits
Confirm water connections, waste position, mounting support, electrical provision and service access for the exact product reference before site installation.
