SERIES-VARIOUSModel 41750979

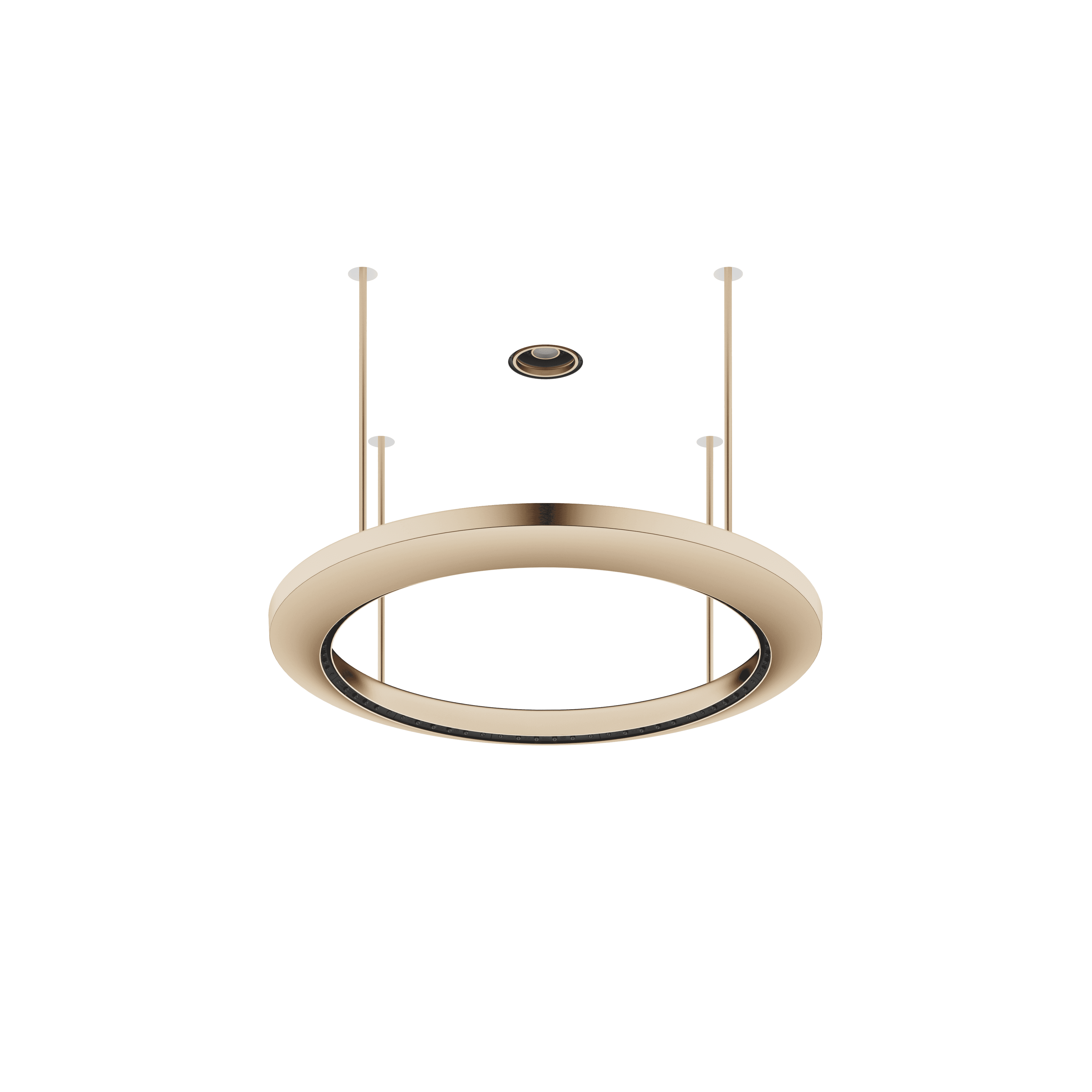

SERIES-VARIOUS AQUAHALO Rain panel

Showers · Spa Showers · Rain Skulptures

Select finish

Brushed Champagne (22kt Gold)

Availability, compatibility, and final specification are confirmed by Aquatop before ordering.

Model 41750979

Use the complete article number when requesting this Dornbracht model. Each finish has its own article number and GTIN.

Finish	Article number	GTIN	Product view
Chrome	41750979-00	4099477200439	View finish
Brushed Champagne (22kt Gold)	41750979-46	4099477200477	Selected
Brushed Platinum	41750979-06	4099477200545	View finish
Champagne (22kt Gold)	41750979-47	4099477200491	View finish
Matte Black	41750979-33	4099477200453	View finish

exposed trim parts
Rain panel with 3 different flow modes
AQUACIRCLE RAIN: Circular rain curtain, max. flow rate 14 l/min (at 3 bar)
TEMPEST RAIN: Natural rain, max. flow rate 9 l/min (at 3 bar)
DIAMOND RAIN: Ring of rain, max. flow rate 6.8 l/min (at 3 bar)
# Technical data:
Outer diameter: 605 mm, opening diameter: 465 mm
Weight: 6 kg
# Electric:
Separate LED power supply
Input LED power supply
Input 100-240V AC 50-60Hz
Output LED power supply
350mA (CC)
Output specification LED power supply
SELV (Safety Extra Low Voltage)
Class 2
Ceiling module power supply
350mA (CC)
Supply pipe 7 m
Spot lighting
LED colour temperature approx. 3000 K
Bulbs protected against splashing water
Contains energy efficiency class bulbs
Technology: LED, not dimmable
IP67
Comply with the protection zone regulations as defined in DIN VDE 0100, Part 701 (IEC 60364-7-701).
# Environment:
Not suitable for use in a steam room.
Not suitable for outdoor use.
Not suitable for use in chlorinated or salty environments.
# Planning tips:
Provided by customer: Light switch
Recommended control element: xTool
# Notes:

35750970-00
